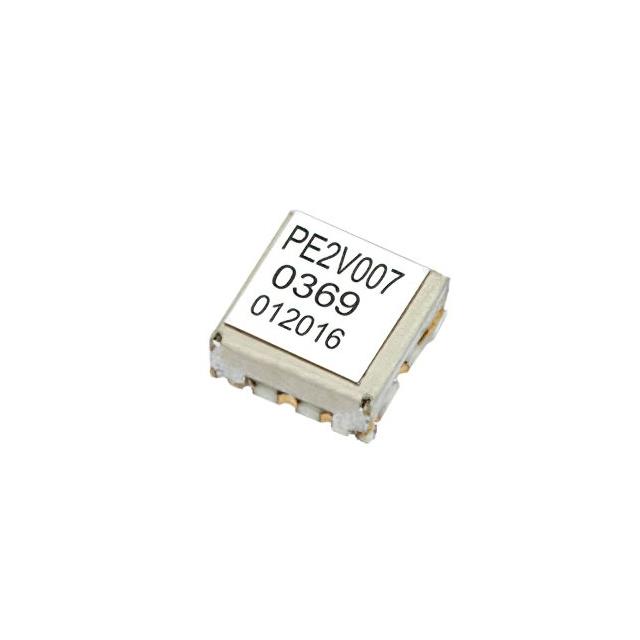

PE2V007

$41.56

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:e35b3c222f6b Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：2 ~ 3GHz
Frequency - Center：2.5GHz
Voltage - Supply：12V
Tuning Voltage (VDC)：0 V ~ 20 V
2nd Harmonic, Typ (dBc)：-14
Icc Max：20mA
Pushing (MHz/V)：2
Power (dBm)：9 -1, +3
Phase Noise Typ (dBc/Hz)：-87
Operating Temperature：-40°C ~ 85°C
Package / Case：8-SMD Module
Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
Height：0.075" (1.90mm)

Download product information

PE2V007

Overview

The PE2V007 is a surface mount voltage-controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 2 GHz to 3 GHz, providing a center frequency of 2.5 GHz. The device utilizes a control voltage input spanning from 0 V to 20 V to adjust the output frequency. It delivers an output power level between -1 dBm and +3 dBm. Key performance metrics include a typical phase noise of -87 dBc/Hz at specified offsets and a second harmonic suppression of -14 dBc. The component is housed in a compact 0.175-inch package designed for SMT integration.

Feature Summary

Surface mount construction for automated PCB assembly
Voltage-controlled frequency tuning via external bias
Integrated RF output stage with defined power levels

Applications

Wireless communication transceivers
Frequency synthesis circuits
Test and measurement instrumentation

Procurement Notes

Verify the specific revision number and pinout configuration against the latest manufacturer datasheet before integration. Ensure that the supply voltage does not exceed the maximum rating of 20 V to prevent device damage. Confirm that the operating temperature range aligns with the environmental requirements of the final application. Check for any specific handling precautions related to the surface mount package type during assembly.

Selection Notes

Select this component when a wide tuning range from 2 GHz to 3 GHz is required in a small form factor. Consider the -87 dBc/Hz phase noise specification for applications sensitive to spectral purity. Evaluate the -14 dBc second harmonic suppression if additional filtering is not feasible in the design. Ensure the control voltage interface matches the available DAC or voltage source capabilities in the system architecture.

Part Context

This part belongs to Pasternack's lineup of surface mount voltage-controlled oscillators. It is designed for high-frequency applications requiring stable and tunable signal generation. The 0.175-inch package size allows for dense circuit board layouts compared to larger through-hole alternatives. It serves as a core frequency reference or local oscillator in modern RF systems.
