PE2V010

Overview

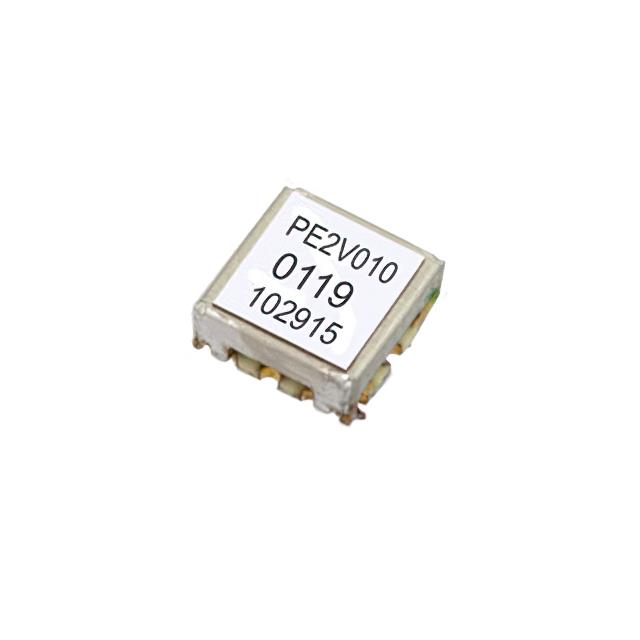

The PE2V010 is a surface mount voltage controlled oscillator manufactured by Pasternack. It operates within a frequency range of 4.4 GHz to 5 GHz. The device features a phase noise specification of -85 dBc/Hz. This component is designed for integration into RF systems requiring stable signal generation in the specified microwave band.

Feature Summary

• Surface mount construction for automated assembly
• Voltage controlled operation for frequency tuning
• Designed for stable microwave signal generation

Applications

• Wireless communication systems
• Test and measurement equipment
• RF signal generation modules

Procurement Notes

Verify the specific datasheet version and electrical tolerances against system requirements before procurement. Confirm surface mount footprint compatibility with PCB design. Ensure supply chain sources provide authentic components from Pasternack Enterprises, Inc. to guarantee performance specifications are met.

Selection Notes

Select this component when a surface mount VCO is required for the 4.4 GHz to 5 GHz range. Consider the -85 dBc/Hz phase noise limit for application suitability. Evaluate thermal management needs for surface mount packages in the final assembly environment.

Part Context

This part belongs to the Pasternack surface mount oscillator family. It provides a compact solution for microwave frequency synthesis. The design supports direct PCB integration without through-hole mounting constraints.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
