Product Detailed Parameters
- Description：Surface Mount (SMT) Voltage Cont
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：4.8GHz ~ 5.2GHz
- Frequency - Center：5GHz
- Voltage - Supply：3.3V
- Tuning Voltage (VDC)：0 V ~ 3 V
- 2nd Harmonic, Typ (dBc)：-20
- Icc Max：10mA
- Pushing (MHz/V)：4
- Power (dBm)：1 +3
- Phase Noise Typ (dBc/Hz)：-80
- Operating Temperature：-40°C ~ 85°C
- Package / Case：8-SMD Module
- Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
- Height：0.075" (1.90mm)
Download product information
Overview

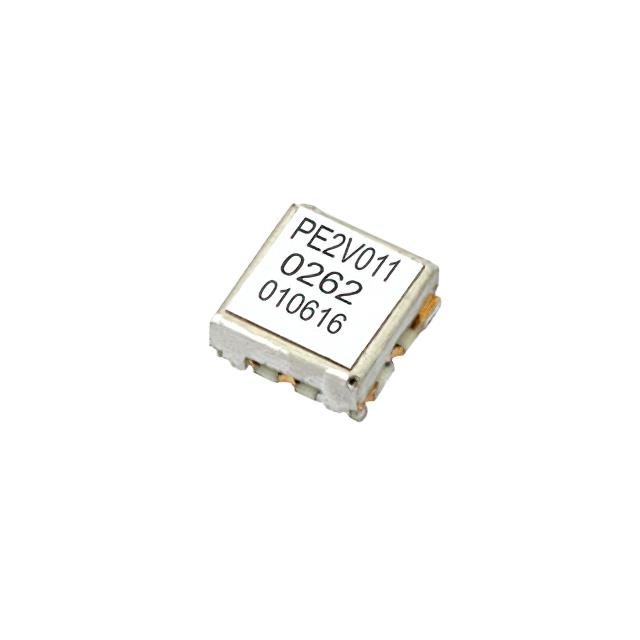

The PE2V011 is a surface mount voltage controlled oscillator manufactured by Pasternack. It operates within a frequency range of 4.8 GHz to 5.2 GHz, providing a center frequency of 5 GHz. The device features a tuning voltage range of 0 V to 3 V and delivers an output power of +3 dBm. Key performance specifications include a typical second harmonic level of -20 dBc and a phase noise of -80 dBc/Hz.
Feature Summary
- Surface mount technology for compact integration
- Voltage controlled operation with 0 V to 3 V tuning range
- Designed for high-frequency applications up to 5.2 GHz
Applications
- Wireless communication systems
- Test and measurement equipment
- RF signal generation modules
Procurement Notes
Verify the specific datasheet version and manufacturing lot details upon order confirmation. Ensure that the receiving environment meets the electrostatic discharge protection requirements specified for surface mount components. Confirm compatibility with the intended PCB layout and soldering profile before finalizing procurement.
Selection Notes
Select this component when a fixed 5 GHz center frequency with narrow bandwidth is required. Consider the -80 dBc/Hz phase noise specification for applications sensitive to spectral purity. Evaluate the +3 dBm output power against system loss budgets. The surface mount package dictates specific footprint constraints during the design phase.
Part Context
This part belongs to Pasternack's portfolio of Voltage Controlled Oscillators (VCOs). It is designed for use in RF circuits requiring stable frequency generation within the microwave spectrum. The product complements other passive and active components in signal chain designs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching electrical parameters including frequency range, phase noise, and output power.
FAQ
What is the tuning voltage range for the PE2V011?
The tuning voltage range is 0 V to 3 V.
What is the typical second harmonic level of this oscillator?
The typical second harmonic level is -20 dBc.
