PE2V012

Overview

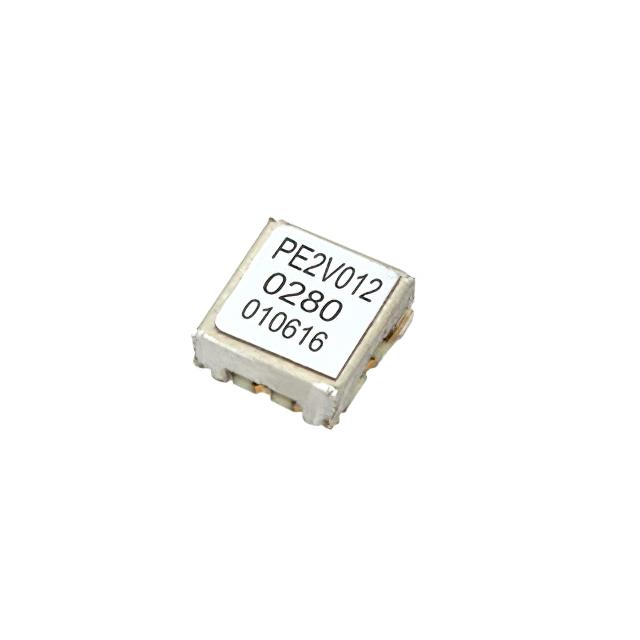

The PE2V012 is a surface mount voltage controlled oscillator manufactured by Pasternack. It operates within a frequency range of 4,800 MHz to 5,700 MHz. The device features a phase noise specification of -84 dBc/Hz at an offset. It utilizes an 8-SMD module package with physical dimensions of 0.175 x 0.175 x 0.075 inches. The component supports a DC supply voltage and includes specific tuning voltage parameters for operation.

Feature Summary

• Surface mount construction for automated assembly integration
• Voltage controlled oscillation capability across specified microwave frequencies
• Compact 8-SMD module packaging design

Applications

• Microwave communication systems
• Frequency synthesis circuits
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical characteristics and mechanical tolerances before integration. Ensure compatibility with the target PCB layout and thermal management requirements. Confirm that the 8-SMD package footprint matches the design specifications exactly.

Selection Notes

Select this component when a surface mount VCO is required for the 4.8 GHz to 5.7 GHz range. Consider the -84 dBc/Hz phase noise performance relative to system sensitivity requirements. Evaluate the small form factor against available board space constraints and verify supply voltage compatibility.

Part Context

This part belongs to the Pasternack voltage controlled oscillator family designed for high-frequency applications. It provides a compact solution for generating stable microwave signals in modern electronic designs. The series focuses on integrating oscillation functions into minimal footprints suitable for dense circuit boards.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Cross-reference with other Pasternack VCO models only if frequency ranges and package types align with specific project needs.
