PE2V013

$41.56

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:466248bb3b4f Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：5.18 ~ 5.805GHz
Frequency - Center：5.4925GHz
Voltage - Supply：11V
Tuning Voltage (VDC)：0 V ~ 10 V
2nd Harmonic, Typ (dBc)：-20
Icc Max：20mA
Pushing (MHz/V)：5
Power (dBm)：6 -1, +3
Phase Noise Typ (dBc/Hz)：-83
Operating Temperature：-40°C ~ 85°C
Package / Case：8-SMD Module
Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
Height：0.075" (1.90mm)

Download product information

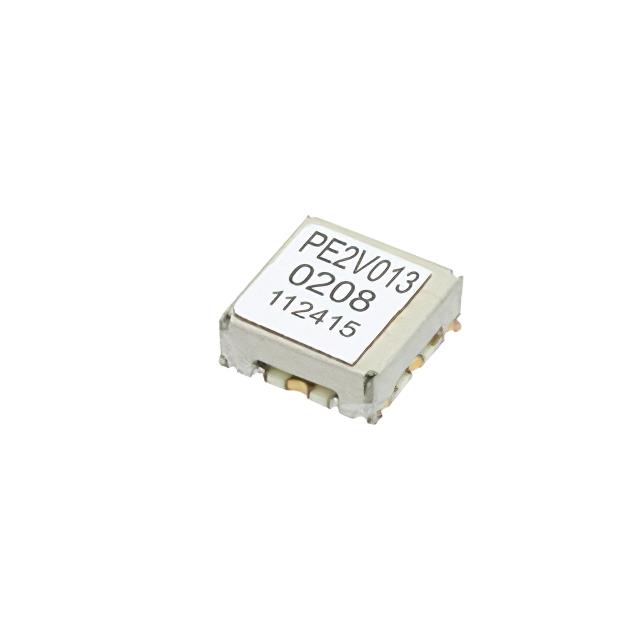

PE2V013

Overview

The PE2V013 is a surface mount voltage controlled oscillator manufactured by Pasternack. It operates within the frequency range of 5.18 GHz to 5.805 GHz. The component utilizes a surface mount technology package for integration into circuit boards. This VCO is designed for applications requiring stable signal generation in the specified microwave frequency band.
