PE2V014

Overview

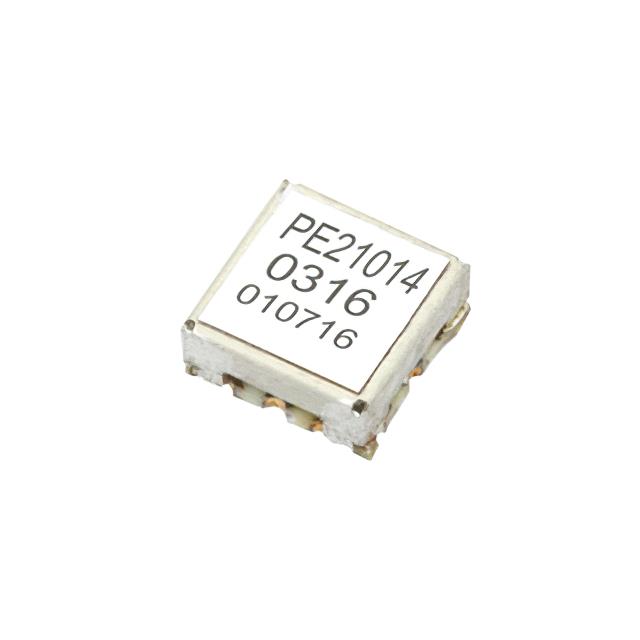

The PE2V014 is a surface mount voltage controlled oscillator manufactured by Pasternack. It operates within the frequency range of 5.4 GHz to 5.9 GHz. The component is designed for integration into RF communication systems, radar equipment, satellite technology, and wireless applications. As a VCO, it provides tunable signal generation suitable for high-frequency circuit requirements.

Feature Summary

• Surface mount construction for automated assembly
• Voltage controlled oscillation capability
• Operates in the 5.4–5.9 GHz frequency band

Applications

• RF communication systems
• Radar equipment
• Satellite equipment
• Wireless applications

Procurement Notes

Verify the specific datasheet version and pinout configuration before integration. Confirm that the surface mount footprint matches the PCB design. Ensure thermal management meets the component's operational requirements. Check for any recent updates to the electrical specifications or recommended operating conditions provided by Pasternack.

Selection Notes

Select this component when a surface mount VCO is required for the 5.4–5.9 GHz range. Consider the tuning voltage characteristics and phase noise performance relative to system needs. Evaluate the physical size constraints for surface mount placement. Verify compatibility with the surrounding RF circuitry and power supply specifications.

Part Context

The PE2V014 belongs to Pasternack's portfolio of surface mount voltage controlled oscillators. It serves as a signal source for high-frequency applications requiring precise frequency control within the specified microwave band. This model supports designs needing compact, reliable oscillator solutions for modern electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available.
