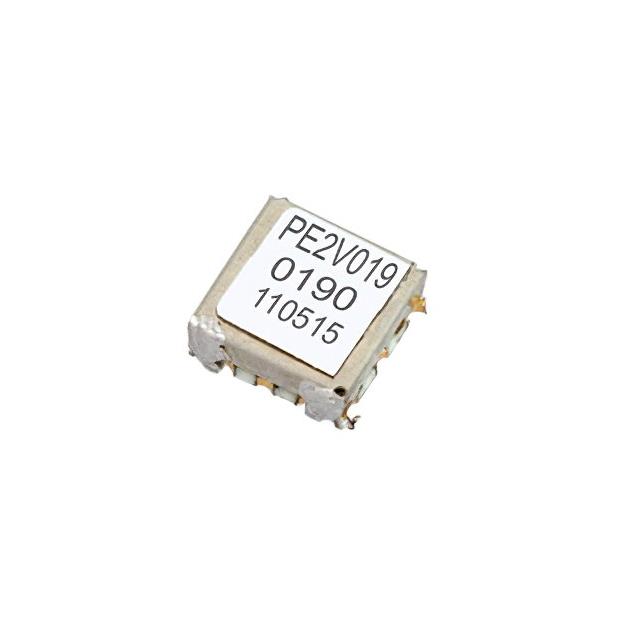

PE2V019

Overview

The PE2V019 is a surface mount voltage controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 10 GHz to 11 GHz, providing a center frequency of 10.5 GHz. The device features a phase noise specification of -72 dBc/Hz and utilizes a control voltage range of 0 V to 11 V. Output power levels are specified at -4 dBm and +3 dBm, with typical second harmonic suppression of -40 dBc. The component is designed for surface mount technology applications.

Feature Summary

• Surface mount voltage controlled oscillator design
• Operates from 10 GHz to 11 GHz frequency range
• Controlled via 0 V to 11 V input voltage
• Provides -72 dBc/Hz phase noise performance

Applications

• Microwave signal generation systems
• RF communication equipment requiring stable oscillation
• Test and measurement instrumentation
• Satellite communication subsystems

Procurement Notes

Verify the specific output power variant required, as specifications indicate both -4 dBm and +3 dBm options. Confirm that the surface mount package dimensions align with the target PCB footprint. Ensure the control voltage supply matches the 0 V to 11 V requirement. Check RoHS compliance status through official manufacturer documentation before finalizing procurement orders.

Selection Notes

Select this component when a compact surface mount VCO is needed for frequencies between 10 GHz and 11 GHz. Consider the -72 dBc/Hz phase noise limit against system sensitivity requirements. Evaluate the 0-11 V control voltage range against available driver circuitry. Compare the physical package size constraints with available board space. Verify thermal management needs for the selected output power level.

Part Context

This part belongs to Pasternack's surface mount voltage controlled oscillator series. It serves as a microwave frequency source component. The device integrates oscillator functionality into a small form factor suitable for modern electronic assemblies. It replaces discrete oscillator designs in high-frequency applications where space and stability are critical factors.

Replacement Considerations

No public confirmed substitute part numbers are documented for this specific model. Cross-reference with other Pasternack VCOs only if frequency and package compatibility allow. Consult manufacturer engineering support for direct replacements.

FAQ

What is the operating frequency range of the PE2V019?

The PE2V019 operates from 10 GHz to 11 GHz.

What is the phase noise specification?

The phase noise is specified at -72 dBc/Hz.

What control voltage range is required?

The device requires a control voltage range of 0 V to 11 V.
