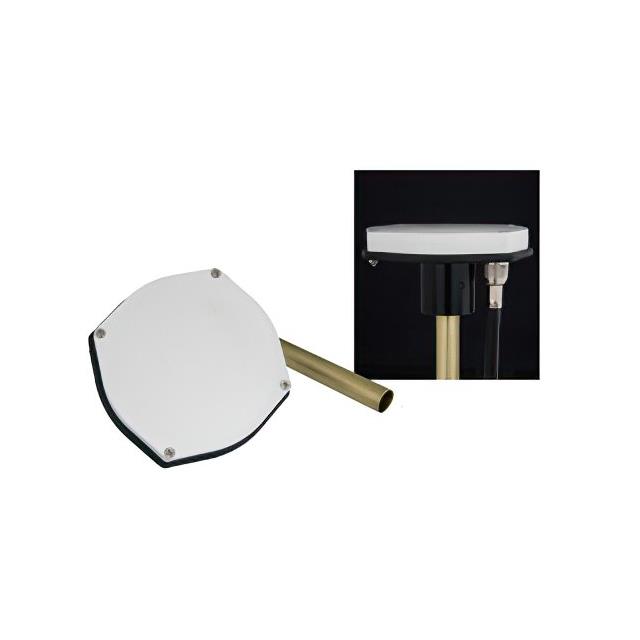

PE51067 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is GPS Active Antenna Operates From. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PE51067
- Description：GPS Active Antenna Operates From
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz
- Frequency Range：1.57GHz ~ 1.58GHz
- Antenna Type：Module
- Number of Bands：1
- VSWR：1.3
- Return Loss：-
- Gain：35dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：6.850" (174.00mm)
- Applications：GPS
- Power - Max：-
Antennas RF datasheet and documents for PE51067
Antennas RF Overview
The PE51067 is a commercial active GPS antenna designed for the L1 band, operating within a frequency range of 1.57 GHz to 1.58 GHz. It features an N female input connector and provides a nominal gain of 32 dBiC. The unit is classified as a single-band GPS active antenna intended for integration into navigation systems requiring reliable signal reception in the specified microwave frequency spectrum.
Antennas RF Feature Summary
- Operates specifically within the L1 band frequency range
- Provides nominal gain of 32 dBiC for signal amplification
- Features an N female input connector for system integration
Antennas RF Applications
- Commercial GPS navigation systems
- Personal location tracking devices
- Military navigation equipment
Antennas RF Procurement Notes
Verify the specific datasheet version when procuring, as documentation may list slight variations such as 35 dBi gain or 1575 MHz center frequency. Confirm that the N female connector matches your system interface requirements. Ensure the component meets the required L1 band specifications for your application before finalizing the order.
Antennas RF Selection Notes
Select this model for applications requiring a dedicated L1 band active antenna with standard N-type connectivity. Consider the 32 dBiC gain specification for signal strength requirements. Verify compatibility with existing RF interfaces utilizing N female connectors. Evaluate suitability for commercial, military, or personal use cases based on the documented design intent.
Antennas RF Part Context
The PE51067 belongs to the Pasternack GPS antenna series, which includes models designed for both L1 and L2 frequency bands. These antennas are engineered for diverse environments ranging from commercial to military applications. The product line focuses on providing reliable GNSS signal acquisition through active amplification and standardized connector interfaces.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official Pasternack catalogs for alternative models within the GPS/GNSS antenna family if this specific configuration is unavailable.
