PE51068

Antennas RF Overview

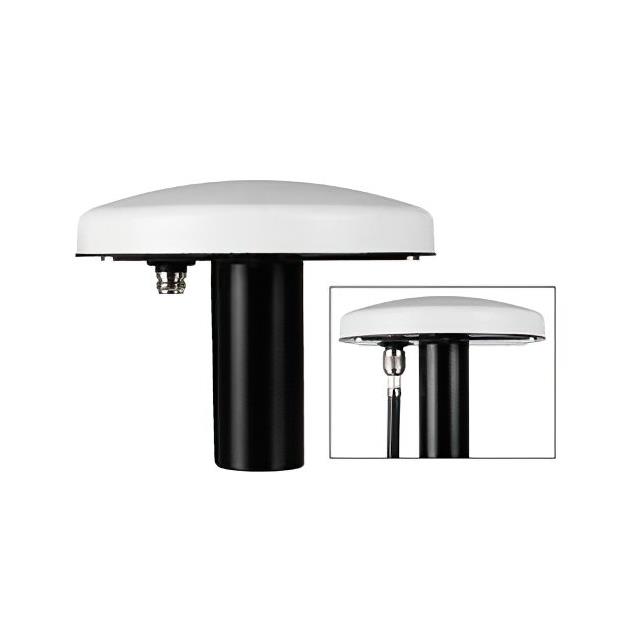

The PE51068 is a GPS passive dual-band antenna manufactured by Pasternack Enterprises. It operates within two distinct frequency ranges: 1.22 GHz to 1.23 GHz and 1.53 GHz to 1.58 GHz. The component provides a nominal gain of 6 dBi. It features an N female input connector for signal interfacing.

Antennas RF Feature Summary

• Dual-band operation supporting specific GPS frequency bands
• Passive design architecture
• N female connector interface

Antennas RF Applications

• GPS signal reception
• GNSS positioning systems
• Navigation equipment integration

Antennas RF Procurement Notes

Verify the specific datasheet version when ordering, as technical documentation may be updated. Confirm that the N female connector type matches the receiving system interface requirements. Ensure environmental specifications align with the intended installation location parameters.

Antennas RF Selection Notes

Select this model when dual-band GPS coverage is required without active amplification. The passive nature simplifies power management compared to active alternatives. Verify compatibility with existing N-type cabling infrastructure before finalizing the procurement decision.

Antennas RF Part Context

This component belongs to the Pasternack GPS antenna product line. It is designed for applications requiring reliable satellite signal acquisition across multiple L-band frequencies. The part serves as a critical interface between satellite signals and receiver electronics.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate other Pasternack models based on connector type and frequency range if replacement is necessary.
