PE51088 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is Portable Dual Band Antenna Opera. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PE51088
- Description：Portable Dual Band Antenna Opera
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：-
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.45GHz, 5.3625GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.825GHz
- Antenna Type：Whip, Straight
- Number of Bands：2
- VSWR：2, 2.5, 3
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：RP-TNC Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：3.571" (90.70mm)
- Applications：General Purpose
- Power - Max：25 W
Antennas RF datasheet and documents for PE51088
Antennas RF Overview

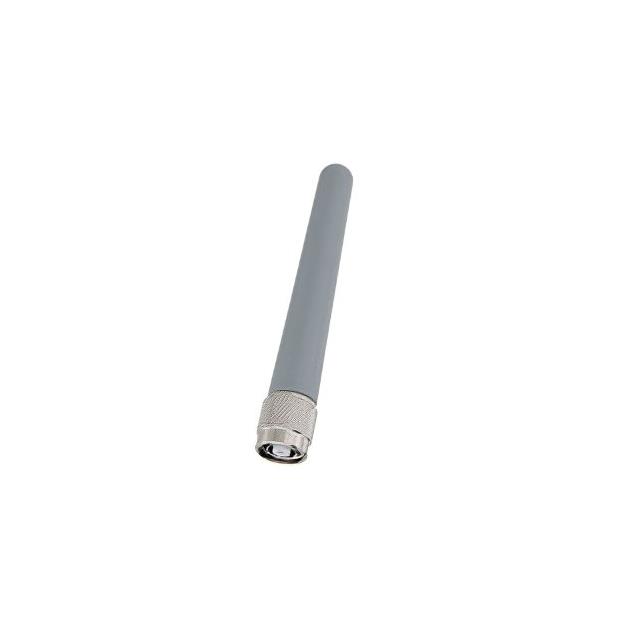

The Pasternack PE51088 is a portable dual-band rubber duck antenna designed for wireless communication applications. It operates across two frequency ranges: 2.4 GHz to 2.5 GHz and 4.9 GHz to 5.1 GHz. The antenna provides a nominal gain of 2 dBi and features a reverse polarity TNC male input connector. Constructed as an omnidirectional unit, it is suitable for environments requiring reliable signal transmission and reception within the specified bands.
Antennas RF Feature Summary
- Dual-band operation supporting 2.4-2.5 GHz and 4.9-5.1 GHz frequencies
- Omnidirectional radiation pattern for consistent coverage
- Portable rubber duck design with reverse polarity TNC male connector
Antennas RF Applications
- Wireless local area network (WLAN) systems
- Industrial, Scientific, and Medical (ISM) band equipment
- Portable radio communication devices
Antennas RF Procurement Notes
Verify the specific connector type and polarization requirements against system specifications before procurement. Confirm that the reverse polarity TNC male interface matches the receiving equipment port. Ensure the operating frequency range aligns with regulatory standards in the deployment region. Check datasheet revisions for any updates regarding material composition or performance tolerances.
Antennas RF Selection Notes
Select this model when a compact, portable antenna solution is required for dual-band operations. The 2 dBi gain offers a balance between size and performance for short-range applications. Consider the reverse polarity connector compatibility during system integration planning. Evaluate environmental durability if the antenna will be exposed to harsh conditions beyond standard indoor use.
Antennas RF Part Context
This component belongs to Pasternack's line of omnidirectional antennas. It is categorized under portable dual-band units, distinct from fixed-mount or high-gain directional variants. The product series focuses on versatile connectivity solutions for wireless infrastructure and mobile devices.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer catalogs for equivalent models with matching connector types and frequency ranges.
