PE51245

Antennas RF Overview

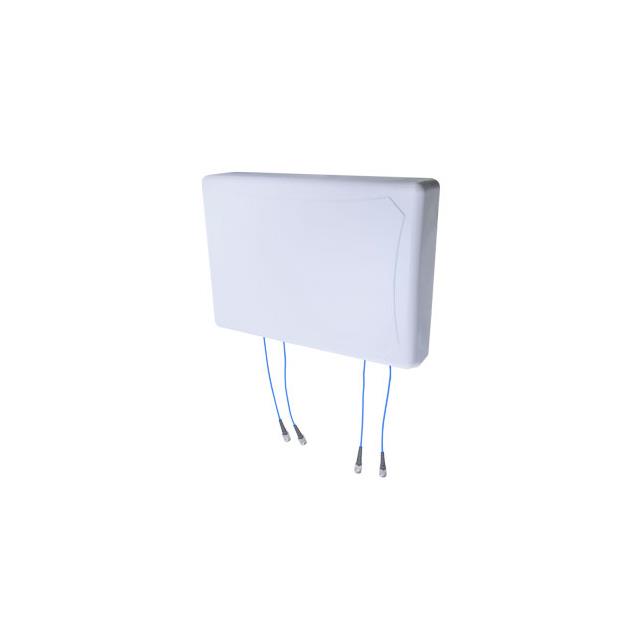

The PE51245 is an indoor Distributed Antenna System (DAS) panel antenna manufactured by Pasternack. It operates within a frequency range of 698 MHz to 4000 MHz and features an N-Female connector interface. The unit supports 4x4 MIMO configuration and provides a gain of 6.5 dBi. Designed for low PIM applications, it utilizes a compact panel form factor suitable for interior deployment in wireless communication networks requiring broad bandwidth coverage.

Antennas RF Feature Summary

• Supports 4x4 MIMO technology for enhanced signal capacity
• Engineered for low passive intermodulation performance
• Optimized for indoor distributed antenna system environments

Antennas RF Applications

• Indoor DAS network deployments
• Wireless carrier infrastructure expansion
• Enterprise building coverage solutions

Antennas RF Procurement Notes

Verify the specific datasheet version and regulatory compliance certifications prior to procurement. Confirm that the N-Female connector orientation matches the existing cabling infrastructure. Ensure the operating temperature range aligns with the intended installation environment specifications to guarantee long-term reliability.

Antennas RF Selection Notes

Select this model when high-density indoor coverage requires multiple spatial streams. The 6.5 dBi gain balances coverage area with interference control. Verify compatibility with existing base station equipment supporting the specified frequency bands and MIMO protocols before integration into the network architecture.

Antennas RF Part Context

This component belongs to Pasternack's line of specialized RF antennas designed for modern cellular infrastructure. It addresses the demand for high-capacity indoor coverage in commercial and industrial facilities. The product integrates standard connector interfaces with advanced MIMO capabilities to support evolving wireless standards.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available.
