PE51AK1002

Antennas RF Overview

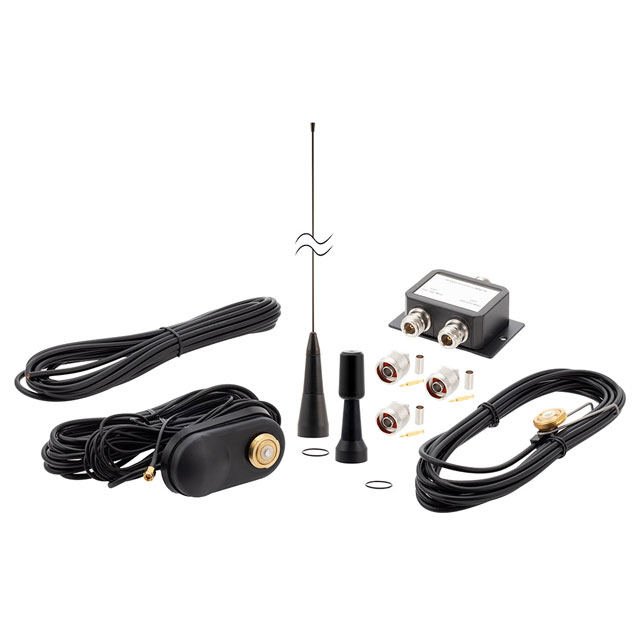

The PE51AK1002 is a TRI Band Duplexed Antenna Kit manufactured by Pasternack. It supports frequency ranges of 108-174 MHz, 420-470 MHz, and includes GPS functionality. The kit is designed for multi-band communication applications requiring simultaneous transmission and reception across these specific VHF, UHF, and L-band frequencies.

Antennas RF Feature Summary

• Supports three distinct frequency bands: 108-174 MHz, 420-470 MHz, and GPS.

Antennas RF Applications

• Multi-band radio communication systems
• VHF/UHF/GPS integrated antenna setups

Antennas RF Procurement Notes

Verify the exact configuration of the duplexed kit against your system requirements. Confirm connector types and cable lengths if not specified in the primary datasheet. Ensure compatibility with existing transceivers operating within the 108-174 MHz, 420-470 MHz, and GPS bands.

Antennas RF Selection Notes

Select this component when a single integrated solution is needed for VHF, UHF, and GPS operations. Consider space constraints as it is a kit rather than individual antennas. Verify that the duplexing capabilities align with your specific frequency planning and isolation requirements.

Antennas RF Part Context

This part belongs to Pasternack's RF antenna product line. It is categorized as a specialized tri-band solution, distinct from standard single-band omnidirectional or directional antennas offered by the manufacturer.

Antennas RF FAQ

What are the specific frequency bands supported?

The PE51AK1002 supports 108-174 MHz, 420-470 MHz, and GPS frequencies.

Is this a single antenna or a kit?

It is a TRI Band Duplexed Antenna Kit, implying multiple components or configurations for the specified bands.
