PE51FP1004 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2.4/4.9-5.8 GHz Four Element, Du. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PE51FP1004
- Description：2.4/4.9-5.8 GHz Four Element, Du
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.45GHz, 5.375GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz
- Antenna Type：Panel
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：13dBi, 15dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：1.000" (25.40mm)
- Applications：802.11a/b/g/n/ac, WLAN
- Power - Max：25 W
Antennas RF datasheet and documents for PE51FP1004
Antennas RF Overview

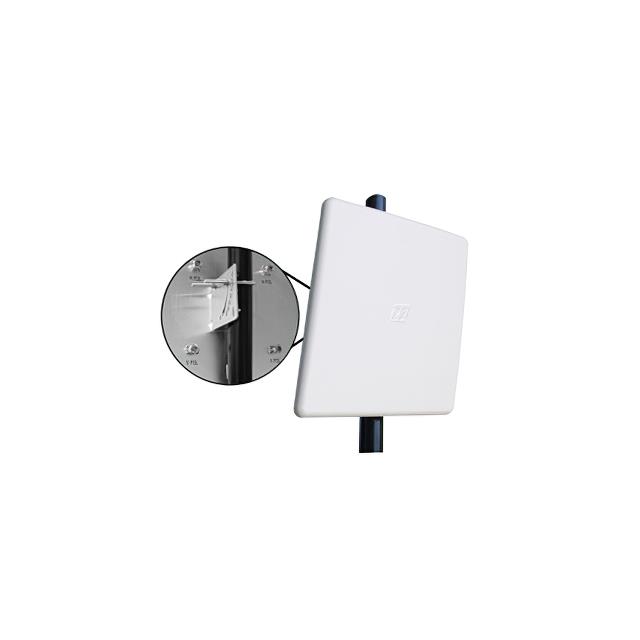

The PE51FP1004 is a four-element, dual-polarized MIMO flat panel antenna manufactured by Pasternack. It operates across the 2.4 GHz and 4.9-5.8 GHz frequency bands, supporting multiple wireless standards including 802.11a/b/g/n/ac. The device is designed for WLAN applications and features an N-type connector interface.
Antennas RF Feature Summary
- Four-element array configuration for enhanced signal performance
- Dual polarization capability to support MIMO systems
- Flat panel form factor suitable for indoor or outdoor mounting
Antennas RF Applications
- WLAN infrastructure deployment
- 802.11a/b/g/n/ac network coverage
- MIMO system integration
Antennas RF Procurement Notes
Verify the specific datasheet provided by Pasternack for complete electrical specifications and mechanical dimensions. Confirm connector type and polarity requirements against system design needs. Ensure environmental ratings match the intended installation location. Cross-reference with official manufacturer documentation for compliance details.
Antennas RF Selection Notes
Select this model when a compact, multi-band solution is required for 2.4 GHz and 5 GHz WLAN environments. The dual-polarized design supports spatial diversity for improved link reliability. Consider the flat panel profile for aesthetic or space-constrained installations compared to omnidirectional alternatives.
Antennas RF Part Context
This component belongs to Pasternack's RF antenna portfolio, specifically targeting wireless local area network (WLAN) applications. It addresses the need for high-gain, directional coverage in modern Wi-Fi deployments utilizing multiple input and multiple output technologies.
Antennas RF Replacement Considerations
No direct substitute part numbers are publicly confirmed in available documentation. Evaluate alternative Pasternack models based on frequency band overlap and connector compatibility if replacement is necessary.
