PE51FP1013

Antennas RF Overview

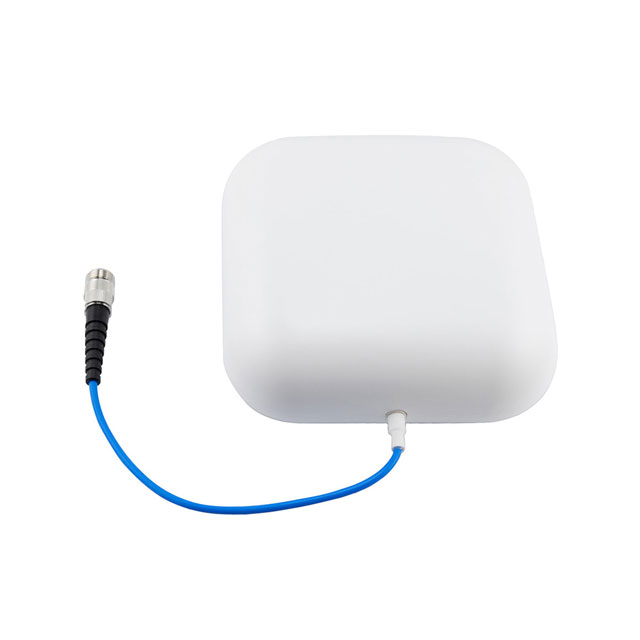

The PE51FP1013 is a wall mount panel antenna manufactured by Pasternack, designed for in-building Distributed Antenna Systems (DAS). It supports three frequency bands: 698-960 MHz, 1710-2700 MHz, and 3400-4200 MHz. The component features an N Type Female connector and is rated for low PIM performance to ensure signal integrity in multi-carrier environments.

Antennas RF Feature Summary

• Low Passive Intermodulation (PIM) rating for high-fidelity signal transmission
• Wall mount panel design optimized for indoor installation
• Multi-band coverage supporting diverse cellular and IoT protocols

Antennas RF Applications

• In-building Distributed Antenna Systems (DAS)
• 5G network infrastructure deployment
• LTE and CDMA signal distribution
• IoT and M2M module connectivity

Antennas RF Procurement Notes

Verify the specific datasheet version and regional availability before ordering. Confirm that the N Type Female interface matches the host equipment requirements. Ensure the selected unit meets the required Low PIM specifications for the intended multi-carrier application environment.

Antennas RF Selection Notes

Select this model when a single-wall-mount solution is required for multiple frequency ranges including sub-1 GHz, LTE, and 5G mid-bands. The N Type connector provides robust mechanical coupling. Verify that the physical dimensions of the panel fit the available mounting space within the building structure.

Antennas RF Part Context

This component belongs to Pasternack's RF antenna portfolio, specifically targeting indoor wireless coverage solutions. It serves as a critical interface between feeder cables and the radio environment, enabling efficient signal propagation for modern mobile networks and IoT deployments.

Antennas RF Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation. Cross-reference with other Pasternack panel antennas only if frequency bands and connector types match exactly.
