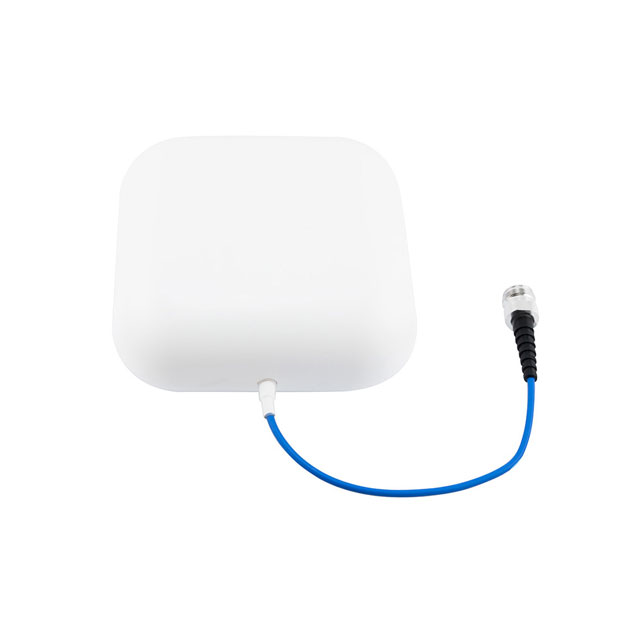

PE51FP1016

$22.27

Description：5DBI PANEL ANT 698-4200MHZ 2X4.3
Series：-
Mfr：Pasternack
Package：Bag

SKU:26518150cbfc Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51FP1016 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 5DBI PANEL ANT 698-4200MHZ 2X4.3. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51FP1016

Description：5DBI PANEL ANT 698-4200MHZ 2X4.3
Series：-
Mfr：Pasternack
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：752MHz, 883MHz, 1.94GHz, 2.45GHz, 3.8GHz
Frequency Range：698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz
Antenna Type：Module
Number of Bands：5
VSWR：1.8
Return Loss：-
Gain：5dBi, 6dBi, 7dBi, 7.5dBi, 8.5dBi
Features：Cable - 300mm
Termination：4.3/10 - Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Wall Mount
Height (Max)：2.360" (59.94mm)
Applications：5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M
Power - Max：50 W

Antennas RF datasheet and documents for PE51FP1016

PE51FP1016

Antennas RF Overview

The PE51FP1016 is a low Passive Intermodulation (PIM) rated wall mount panel antenna manufactured by Pasternack. It supports three distinct frequency bands: 698-960 MHz, 1710-2700 MHz, and 3400-4200 MHz. The component features vertical polarization and utilizes a 4.3-10 female connector interface. Designed for Distributed Antenna Systems (DAS), it serves as a high-performance solution for in-building wireless coverage applications.

Antennas RF Feature Summary

Low PIM rating for signal integrity
Vertical polarization design
Wall mount form factor

Antennas RF Applications

In-building Distributed Antenna Systems (DAS)
5G network infrastructure deployment
LTE and CDMA coverage enhancement

Antennas RF Procurement Notes

Verify the specific connector type and polarization requirements against system specifications before procurement. Confirm regional availability and shipping restrictions with authorized distributors, as supply status may vary. Ensure compatibility with existing mounting hardware and cabling interfaces to prevent installation delays or performance mismatches.

Antennas RF Selection Notes

Select this model when vertical polarization is required for indoor coverage solutions. The multi-band capability allows support for various cellular technologies within a single unit. Consider the 4.3-10 interface standard for connector compatibility. Evaluate the low PIM characteristics for systems sensitive to intermodulation distortion.

Antennas RF Part Context

This component belongs to Pasternack's RF antenna portfolio, specifically targeting the Distributed Antenna System market. It addresses the need for reliable indoor coverage across multiple cellular generations. The product integrates multi-band functionality into a compact wall-mountable enclosure suitable for commercial and industrial environments.
