PE51OM1006 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2.4/ 5 GHz 6 dBi Dual Band / Dua. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PE51OM1006
- Description：2.4/ 5 GHz 6 dBi Dual Band / Dua
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：4.15GHz
- Frequency Range：2.4GHz ~ 5.9GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：6dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：29.400" (746.76mm)
- Applications：802.11a/b/g/ac, Wi-Fi, WiMax™
- Power - Max：100 W
Antennas RF datasheet and documents for PE51OM1006
Antennas RF Overview

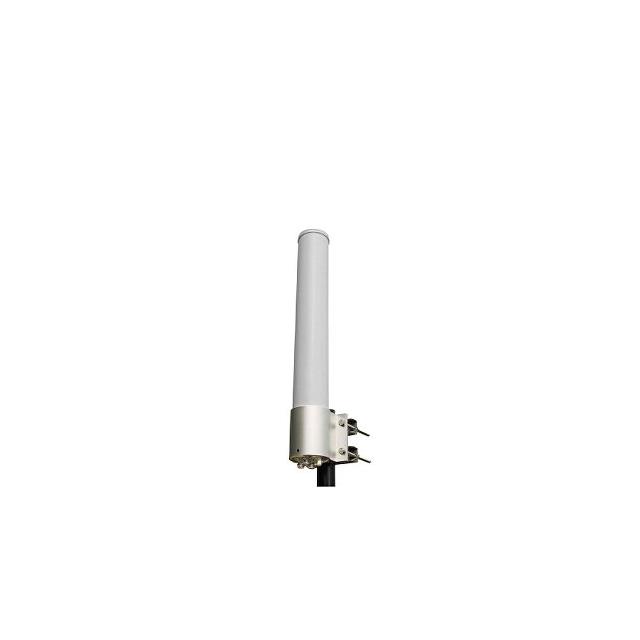

The Pasternack PE51OM1006 is a dual-band omni-directional antenna designed for cellular and wireless applications. It operates within the 2.4-2.5 GHz and 5.1-5.9 GHz frequency ranges, providing a nominal gain of 6 dBi across both bands. The unit features four N-type female connectors for multi-port connectivity. It utilizes a PVC radome for environmental protection and includes a bracket mount for installation.
Antennas RF Feature Summary
- Dual-band operation supporting 2.4-2.5 GHz and 5.1-5.9 GHz frequencies
- Omni-directional radiation pattern with 6 dBi nominal gain
- Four-port configuration with N-type female connectors
- PVC radome construction for outdoor durability
Antennas RF Applications
- Cellular network infrastructure
- Wi-Fi (802.11a/b/g/ac) deployments
- WiMax systems
- LTE networks
Antennas RF Procurement Notes
Verify the specific connector type and port count against project requirements before ordering. Confirm that the N-type female interface matches existing cabling. Ensure the PVC radome material is suitable for the intended environmental conditions. Check compatibility with the included mounting bracket for the installation site.
Antennas RF Selection Notes
Select this model when dual-band coverage in the 2.4 GHz and 5 GHz ISM/UNII bands is required. The four-port design supports multiple radio units or polarization diversity. Consider the omni-directional pattern for uniform coverage needs. Verify that the 6 dBi gain meets link budget calculations for the specific application distance.
Antennas RF Part Context
This component belongs to Pasternack's standard series of omni-directional antennas. It is categorized under RF antennas for wireless communications. The product line focuses on providing reliable connectivity solutions for various industrial and commercial wireless standards.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult official Pasternack resources for cross-reference information if this specific model is unavailable.
