PE51OM1009

$74.89

Description：2.4/ 5 GHz 6 dBi Dual Band / Pol
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:235d09739520 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51OM1009 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2.4/ 5 GHz 6 dBi Dual Band / Pol. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51OM1009

Description：2.4/ 5 GHz 6 dBi Dual Band / Pol
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：4.1GHz
Frequency Range：2.4GHz ~ 5.8GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.6
Return Loss：-
Gain：6dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：29.400" (746.76mm)
Applications：802.11a/b/g/n/ac, Wi-Fi, WiMax™
Power - Max：100 W

Antennas RF datasheet and documents for PE51OM1009

PE51OM1009

Antennas RF Overview

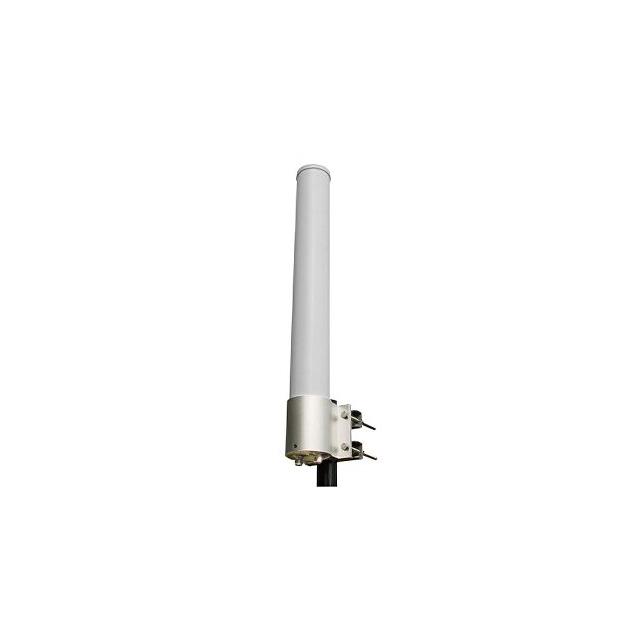

The Pasternack PE51OM1009 is a dual-band omni-directional antenna engineered for outdoor cellular network deployments. It operates across two distinct frequency ranges: 2.4 to 2.5 GHz and 5.1 to 5.8 GHz. The unit provides a consistent gain of 6 dBi within these bands. It features N-type female connectors on both ports, facilitating standard RF cable integration. The design incorporates a PVC radome for environmental protection. Maximum Voltage Standing Wave Ratio (VSWR) is specified at 1.6:1, ensuring efficient signal transmission. This configuration supports simultaneous operation on both frequency bands through its dual-port architecture.

Antennas RF Feature Summary

Dual-band capability supporting 2.4-2.5 GHz and 5.1-5.8 GHz frequencies simultaneously
Omni-directional radiation pattern with 6 dBi gain for uniform coverage
Durable PVC radome construction designed for reliable outdoor environmental exposure
Dual N-type female connectors enabling independent port connections

Antennas RF Applications

Outdoor cellular network infrastructure deployment
5G and LTE base station connectivity
Wi-Fi access point installations in open environments
Wireless communication system backbone links

Antennas RF Procurement Notes

Verify the specific connector gender and interface type against existing cabling infrastructure prior to purchase. Confirm that the operating frequency bands align precisely with local regulatory spectrum allocations. Ensure the mounting hardware supports the physical dimensions and weight specifications provided in the technical documentation. Validate environmental ratings match the intended installation site conditions.

Antennas RF Selection Notes

Select this model when dual-band coverage is required for both sub-3 GHz and mid-band frequencies in a single physical unit. The omni-directional characteristic makes it suitable for scenarios requiring 360-degree coverage rather than focused beam applications. Consider the N-type connector interface for compatibility with standard coaxial cables. Evaluate the PVC radome durability against specific weather exposure requirements at the installation site.

Antennas RF Part Context

This component belongs to Pasternack's line of directional and omni-directional antennas. It serves as an alternative to single-band solutions by combining two frequency ranges into one housing. The product targets the wireless communications sector, specifically addressing the need for compact, multi-frequency outdoor antennas. It complements other RF components by providing the final radiating element in the transmission chain.
