PE51OM1026

Antennas RF Overview

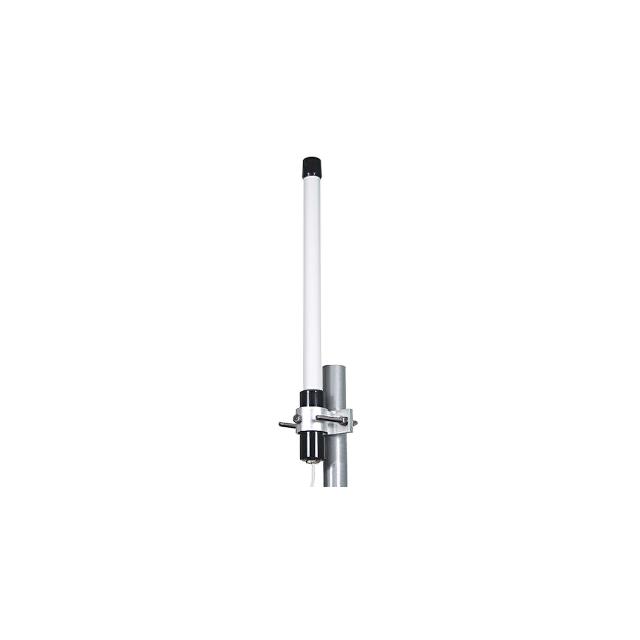

The Pasternack PE51OM1026 is a 2.4 GHz omnidirectional whip antenna designed for WLAN and ISM applications. It operates within the 2.4 GHz to 2.5 GHz frequency range with an 8 dBi gain. The unit features an SMA plug connector and utilizes a fiberglass radome construction. It supports 802.11b/g/n, Bluetooth, Wi-Fi, and WLAN protocols. The antenna provides a maximum VSWR of 2:1 and is intended for bracket mounting.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for consistent signal coverage
• Fiberglass radome construction for environmental durability
• SMA plug connector interface for standard integration

Antennas RF Applications

• WLAN connectivity systems
• Bluetooth device integration
• ISM band wireless communication

Antennas RF Procurement Notes

Verify the specific SMA plug configuration and physical dimensions against system requirements before procurement. Confirm that the fiberglass radome material meets environmental exposure standards for the intended installation location. Ensure compatibility with existing bracket mounting hardware to guarantee secure mechanical attachment during operation.

Antennas RF Selection Notes

Select this model when high gain is required for omnidirectional coverage in the 2.4 GHz spectrum. The SMA interface suits standard RF connections without requiring adapters. Consider the fiberglass radome for outdoor or harsh environments where weather resistance is necessary. Evaluate the 8 dBi gain against link budget requirements to ensure adequate signal strength.

Antennas RF Part Context

This component belongs to Pasternack's RF antenna portfolio, specifically targeting wireless local area network and industrial, scientific, and medical frequency bands. It complements other antennas by offering higher gain than standard dipole designs while maintaining a compact form factor suitable for various mounting configurations.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available.
