PE51OM1032

$20.50

Description：3-4DBI LPIM OMNI .6-4.2GH 4.3(F)
Series：-
Mfr：Pasternack
Package：Bag

SKU:18f4a2d246a6 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51OM1032 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 3-4DBI LPIM OMNI .6-4.2GH 4.3(F). Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51OM1032

Description：3-4DBI LPIM OMNI .6-4.2GH 4.3(F)
Series：-
Mfr：Pasternack
Package：Bag
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：752MHz, 883MHz, 2.205GHz, 3.8GHz
Frequency Range：704MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.2GHz, 2.496GHz ~ 2.69GHz
Antenna Type：Module
Number of Bands：4
VSWR：1.8
Return Loss：-
Gain：3.5dBi, 3dBi, 3.5dBi, 4dBi
Features：-
Termination：4.3/10 - Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：2.640" (67.06mm)
Applications：5G, CBRS, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M, Wi-Fi
Power - Max：50 W

Antennas RF datasheet and documents for PE51OM1032

PE51OM1032

Antennas RF Overview

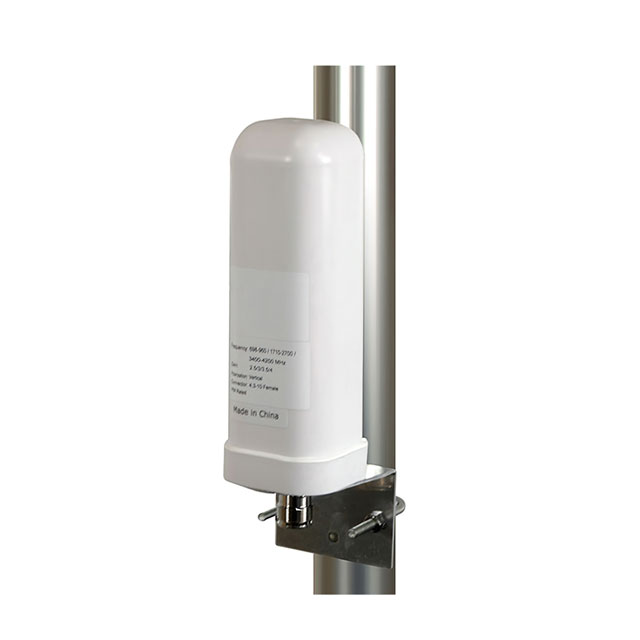

The PE51OM1032 is a multi-band omnidirectional antenna manufactured by Pasternack. It features an ABS radome and a 4.3-10 female connector for bracket mounting. The unit supports multiple frequency ranges: 698-806 MHz, 806-960 MHz, 1.71-2.7 GHz, 3.4-4.2 GHz, and 4.3-10 GHz. Maximum VSWR is specified at 1.8:1. Gain varies across bands, ranging from 3 dBi to 4 dBi. The physical height is 2.640 inches (67.06 mm).

Antennas RF Feature Summary

Multi-band coverage supporting diverse wireless standards including 5G, CBRS, LTE, and Wi-Fi.
Low PIM rated construction suitable for indoor and outdoor deployment.
Durable ABS radome design with integrated bracket mount.

Antennas RF Applications

5G network infrastructure deployment
CBRS (Citizens Broadband Radio Service) systems
IoT and M2M connectivity modules
LTE and GSM base station upgrades

Antennas RF Procurement Notes

Verify the specific frequency band requirements against the datasheet specifications before procurement. Confirm that the 4.3-10 female connector interface matches existing system hardware. Ensure environmental ratings for the ABS radome are sufficient for the intended installation location. Cross-reference gain values for each supported band to ensure adequate signal performance.

Antennas RF Selection Notes

Select this model when multi-band operation across sub-1 GHz and microwave frequencies is required in a single compact form factor. The 4.3-10 connector offers improved shielding compared to standard SMA types. Consider the 1.8:1 VSWR limit for impedance matching requirements. Evaluate the 3.5 dBi average gain against site-specific propagation needs.

Antennas RF Part Context

This component belongs to Pasternack's RF Antenna product line, specifically designed for broadband communication applications. It serves as a versatile solution for modern wireless networks requiring simultaneous support for cellular, IoT, and private radio services. The part integrates low passive intermodulation characteristics to maintain signal integrity in dense network environments.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Users should verify compatibility based on connector type (4.3-10 female), frequency range overlap, and mechanical dimensions when evaluating alternative antennas.
