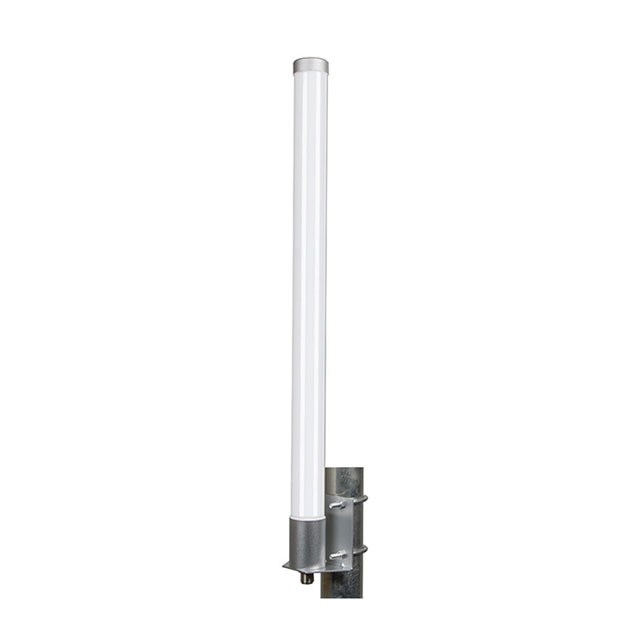

PE51OM1042

$288.18

Description：8 DBI OMNI 1710-2700MHZ N(F)
Series：-
Mfr：Pasternack
Package：Bag

SKU:5553ee54f364 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51OM1042 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 8 DBI OMNI 1710-2700MHZ N(F). Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51OM1042

Description：8 DBI OMNI 1710-2700MHZ N(F)
Series：-
Mfr：Pasternack
Package：Bag
RF Family/Standard：Cellular, Navigation
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.205GHz
Frequency Range：1.71GHz ~ 2.7GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2.3
Return Loss：-
Gain：8dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：22.600" (574.04mm)
Applications：5G, LTE
Power - Max：50 W

Antennas RF datasheet and documents for PE51OM1042

PE51OM1042

Antennas RF Overview

The Pasternack PE51OM1042 is an omni-directional RF antenna designed for cellular networks, specifically supporting 5G and LTE applications. It operates within a frequency range of 1710 MHz to 2700 MHz and provides a gain of 8 dBi. The connector type is N-Type Female, facilitating secure attachment to compatible transmission lines. This component is engineered for outdoor deployment in professional line environments.

Antennas RF Feature Summary

Omni-directional radiation pattern ensures uniform signal coverage
Optimized performance for 5G and LTE cellular network infrastructure
Robust construction suitable for outdoor professional line deployments

Antennas RF Applications

5G cellular network installations
LTE wireless communication systems
Outdoor professional line connectivity

Antennas RF Procurement Notes

Verify the specific model designation against official Pasternack documentation to confirm compatibility with current network standards. Ensure that the N-Type Female connector interface matches the existing system requirements. Confirm environmental ratings are sufficient for the intended outdoor installation location before finalizing procurement decisions.

Antennas RF Selection Notes

Select this antenna when high-gain omni-directional coverage is required for cellular frequencies between 1710 MHz and 2700 MHz. The N-Type Female connector is standard for many base station setups. Consider the outdoor-rated construction for durability in harsh weather conditions compared to indoor alternatives.

Antennas RF Part Context

This component belongs to the Pasternack Proline series of RF antennas. These products are targeted at professional telecommunications infrastructure rather than consumer electronics. The design focuses on reliable performance in demanding outdoor environments typical of modern cellular network deployments.
