PE51PD1009

Antennas RF Overview

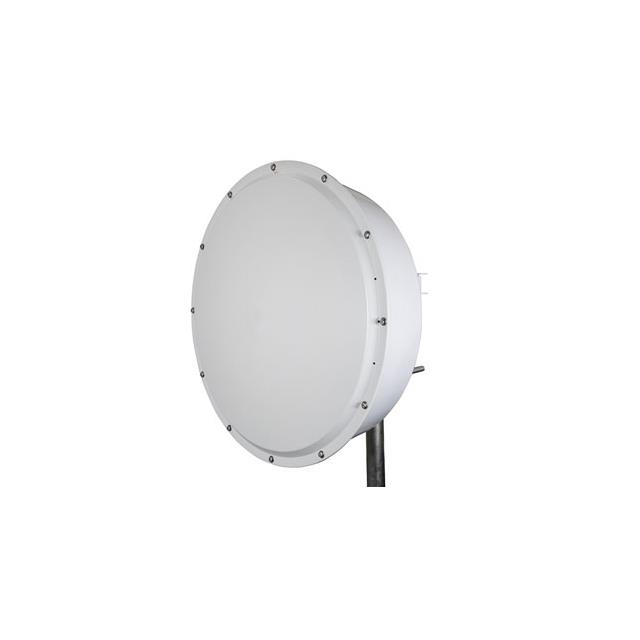

The PE51PD1009 is a directional parabolic antenna manufactured by Pasternack, designed for operation within the 4900 MHz to 7125 MHz frequency range. It features a 2x2 MIMO configuration and provides a gain of 30 dBi. The unit utilizes an RPSMA connector interface and is constructed as a 2-foot deep dish design. This component belongs to the Directional Antennas series and is packaged in bulk quantities.

Antennas RF Feature Summary

• Supports 2x2 MIMO technology for enhanced signal capacity
• Features a 2-foot deep dish parabolic reflector design
• Equipped with RPSMA connectors for secure attachment

Antennas RF Applications

• 5G wireless infrastructure deployment
• Wi-Fi dish RF antenna systems
• Point-to-point microwave communication links

Antennas RF Procurement Notes

Verify the specific revision level and manufacturing date code against the official datasheet before procurement. Confirm that the RPSMA connector polarity matches the receiving equipment requirements. Ensure environmental ratings align with the intended installation location. Cross-reference the part number with the manufacturer's current product lifecycle status to confirm availability and support duration.

Antennas RF Selection Notes

Select this model when a high-gain directional solution is required for frequencies between 4900 MHz and 7125 MHz. The 2x2 MIMO capability supports increased data throughput compared to single-antenna alternatives. Consider the 2-foot physical dimensions for mounting space constraints. Verify compatibility with existing RPSMA cabling infrastructure.

Antennas RF Part Context

This component is part of Pasternack's Directional Antennas series, specifically engineered for high-frequency wireless applications. It complements other models in the PE51PD family, such as the PE51PD1007 and PE51PD1011, which offer different dish depths and corresponding gain variations. These antennas are designed to provide focused signal transmission and reception for specialized RF environments.

Antennas RF Replacement Considerations

The PE51PD1007 (1-foot dish) and PE51PD1011 (3-foot dish) serve as dimensional alternatives within the same series. Substitution requires verification of gain specifications and physical mounting requirements. Ensure the replacement maintains the 2x2 MIMO configuration and RPSMA interface compatibility.
