PE51RD1024

Antennas RF Overview

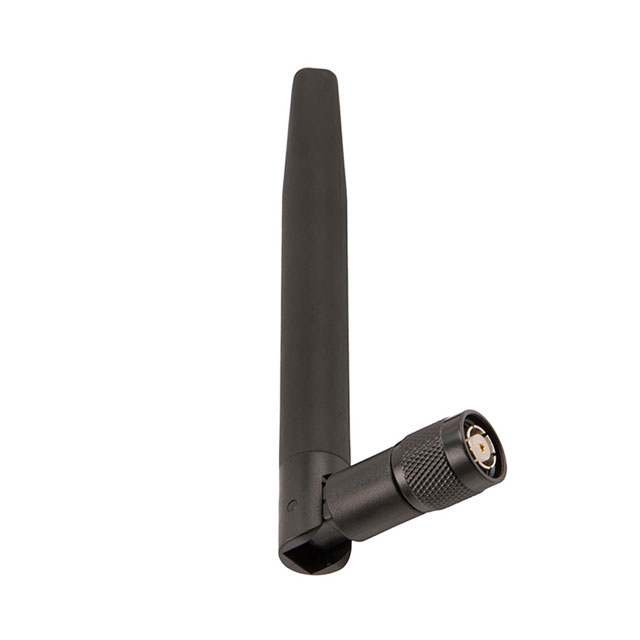

The Pasternack PE51RD1024 is a high-performance omnidirectional rubber duck antenna engineered for the 2.4 GHz Industrial, Scientific, and Medical (ISM) band. It operates within a frequency range of 2,400 to 2,500 MHz and provides a gain of 3 dBi. The component utilizes an RP-TNC connector interface and features a tilt-and-swivel design for flexible orientation. Constructed as a durable 'rubber-duck' style unit, it weighs approximately 59 grams and is packaged in bulk quantities.

Antennas RF Feature Summary

• Omnidirectional radiation pattern optimized for the 2.4 GHz ISM band
• Tilt-and-swivel mechanical design for adjustable positioning
• Durable rubber duck construction suitable for varied environments

Antennas RF Applications

• Wireless local area network (WLAN) systems
• Bluetooth device connectivity
• Zigbee sensor networks
• Industrial telemetry applications

Antennas RF Procurement Notes

Verify the specific RP-TNC connector polarity configuration required for your system integration, as reverse polarity interfaces are distinct from standard TNC types. Confirm that the operating frequency range aligns with your regulatory requirements for the 2.4 GHz ISM band. Ensure mechanical mounting constraints accommodate the tilt-and-swivel joint movement without strain on the connector interface during operation.

Antennas RF Selection Notes

Select this model when an omnidirectional coverage pattern is required for 2.4 GHz applications. The 3 dBi gain offers a balance between signal reach and compact form factor. The RP-TNC interface necessitates compatible reverse-polarity cabling or adapters. Consider the physical dimensions and weight if portability or space-constrained mounting is a priority compared to larger directional antennas.

Antennas RF Part Context

This component belongs to Pasternack's line of RF antennas designed for wireless communication infrastructure. It serves as a passive radiating element within transceiver systems. The product series focuses on reliable performance in industrial and commercial wireless bands. It complements other Pasternack interconnect solutions by providing standardized antenna interfaces for various radio frequency modules.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available.
