PE6033A

Overview

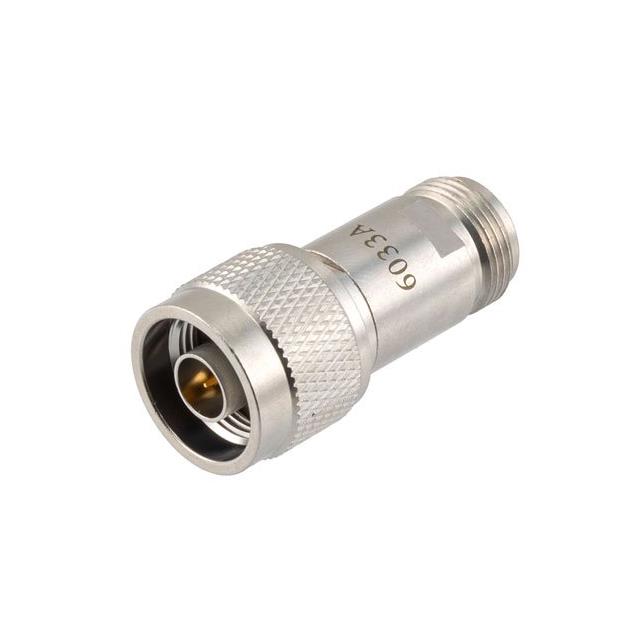

The PE6033A is a 2-watt feed-through RF load manufactured by Pasternack, designed for operation up to 1 GHz. It features an N-type male connector on one side and an N-type female connector on the other, allowing it to be inserted directly into a transmission line without requiring adapters. The component utilizes a brass body construction to provide mechanical stability and thermal dissipation capabilities suitable for its power rating. This termination device serves as a broadband absorber for radio frequency signals within its specified frequency range.

Feature Summary

• Provides a matched 50-ohm termination for RF signal paths
• Features a feed-through design with integrated male and female connectors
• Constructed with a brass body for structural integrity and heat management

Applications

• Broadband RF system testing and characterization
• Signal source isolation and reflection reduction
• Antenna measurement setups requiring stable terminations

Procurement Notes

Verify the specific connector gender configuration matches the test setup requirements before ordering. Confirm that the 2-watt power handling capacity is sufficient for the intended application environment. Check current availability status as components may be subject to supply constraints or discontinuation notices from the manufacturer.

Selection Notes

Select this component when a through-line termination is required rather than a flanged mount option. Ensure the operating frequency does not exceed 1 GHz to maintain performance specifications. Consider the brass material properties for environmental compatibility and thermal requirements in the installation location.

Part Context

This part belongs to the category of RF terminators and loads produced by Pasternack. It is distinct from active components like bias tees or switches, serving purely as a passive absorbing element. The product line focuses on providing reliable impedance matching solutions for laboratory and field applications involving coaxial connections.

Replacement Considerations

No direct substitute part numbers are documented in the provided data. Verify if generic N-type 50-ohm loads meet the specific power and frequency requirements if this exact model is unavailable.
