PE6209

Overview

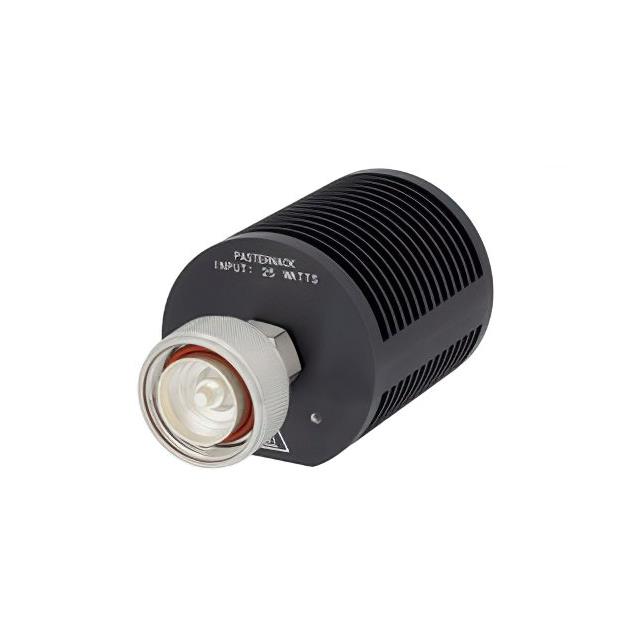

The Pasternack PE6209 is a general-purpose RF termination designed for high-power applications. It features a 7/16 DIN male input connector and operates within a frequency range of 0 Hz to 8 GHz. The device is rated for 25 Watts of power handling capacity. Constructed with a round body made of black anodized aluminum, it incorporates a heatsink to manage thermal dissipation effectively. This component serves as a dummy load or RF terminator in various radio frequency systems.

Feature Summary

• Provides stable RF termination across a broad frequency spectrum up to 8 GHz
• Features a robust 7/16 DIN male connector interface for secure attachment
• Utilizes a black anodized aluminum heatsink design for efficient thermal management
• Rated for 25 Watts continuous power handling in general-purpose applications

Applications

• Radio frequency test and measurement setups requiring precise termination
• Telecommunications equipment testing and signal path stabilization
• High-power RF system dummy loads for transmitter characterization
• Laboratory instrumentation requiring broadband RF absorption

Procurement Notes

Verify the specific connector gender and interface type against system requirements before ordering. Confirm that the 7/16 DIN male configuration matches the mating hardware in the application. Ensure the 25 Watt power rating and 8 GHz frequency limit exceed the operational parameters of the intended RF circuit. Check for any environmental constraints regarding the aluminum heatsink construction.

Selection Notes

Select this model when a fixed 50 Ohm termination is required for frequencies extending to 8 GHz. Consider the physical size and mounting options provided by the round body design. Evaluate the thermal performance capabilities relative to the expected duty cycle and ambient temperature conditions. Compare against other terminators if different connector types or power ratings are necessary for the specific installation.

Part Context

This component belongs to the category of RF misc ICs and modules, specifically functioning as an RF terminator. Pasternack offers a range of such components to support various impedance and frequency needs in electronic systems. The PE6209 represents a standard solution for absorbing RF energy without reflection in high-frequency environments.

Replacement Considerations

FMCN45856 from Fairview Microwave is listed as a parameter equivalent substitute. Verify mechanical dimensions and electrical specifications match before swapping.
