PE6210

Overview

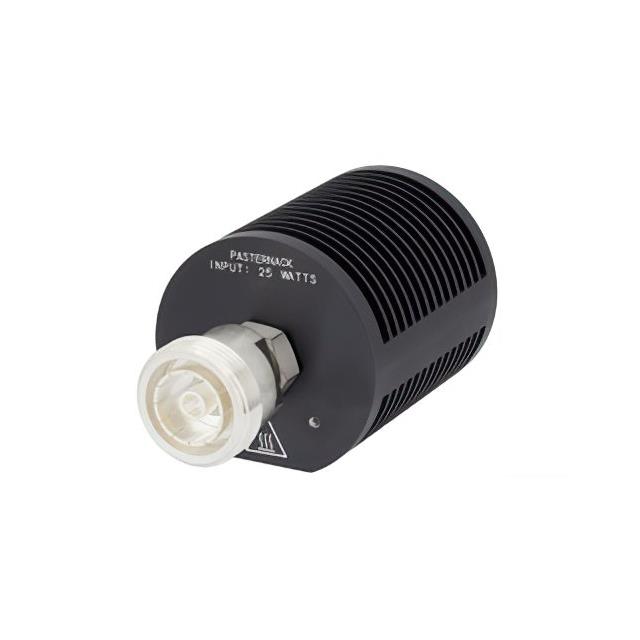

The Pasternack PE6210 is a 25-watt RF load termination designed for frequencies up to 8 GHz. It features a 7/16 DIN female input connector and utilizes a round body constructed from brass with black anodized aluminum heatsink elements. The component maintains a maximum voltage standing wave ratio (VSWR) of 1.6:1 and operates at a characteristic impedance of 50 ohms.

Feature Summary

• High power handling capability rated at 25 watts
• Broadband frequency operation extending up to 8 GHz
• Integrated heatsink design using black anodized aluminum
• Low VSWR performance ensuring efficient signal termination

Applications

• RF system load termination
• Signal source protection
• Transmitter testing environments

Procurement Notes

Verify the specific connector interface matches the 7/16 DIN female standard required by the application. Confirm that the 25-watt power rating and 8 GHz frequency limit are sufficient for the intended operational parameters. Ensure the physical dimensions of the round body and heatsink fit within the available installation space constraints.

Selection Notes

Select this model when a robust, high-power termination is needed for frequencies up to 8 GHz. The 7/16 DIN interface is suitable for larger coaxial systems requiring secure connections. Consider the thermal management provided by the anodized aluminum construction for continuous duty cycles in high-power scenarios.

Part Context

This component belongs to the category of RF terminators and loads manufactured by Pasternack. It serves as a passive device to absorb RF energy, preventing reflections in transmission lines. The design focuses on durability and thermal dissipation for industrial and commercial radio frequency applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
