PE6215

Overview

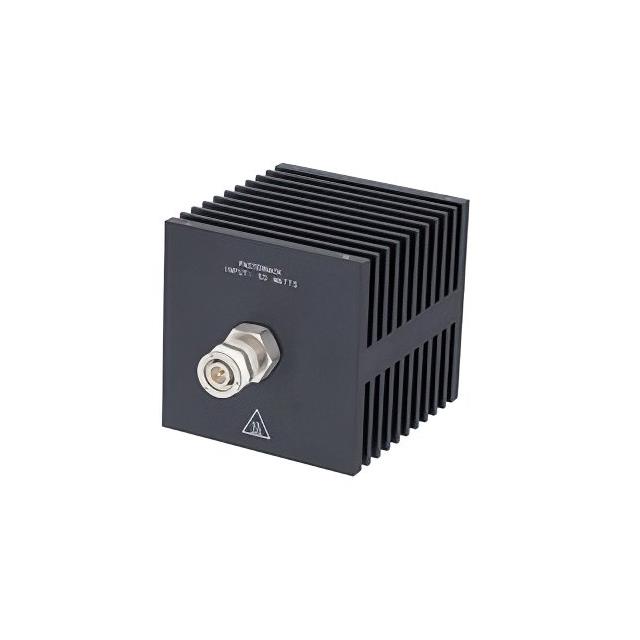

The PE6215 is a medium power TNC male coaxial load rated for up to 18 GHz. It features an average power handling capacity of 50 Watts and a maximum voltage standing wave ratio (VSWR) of 1.6:1. The component utilizes a 50 Ohm impedance design with a stainless steel body. This termination is engineered for stable RF performance across its specified frequency range, providing reliable signal absorption in high-frequency circuit applications.

Feature Summary

• Constructed from passivated stainless steel for durability
• Designed for medium power RF termination tasks
• Maintains low VSWR for efficient signal absorption

Applications

• RF test and measurement setups
• Signal generator output termination
• Circuit board characterization

Procurement Notes

Verify the specific datasheet version for the PE6215 to confirm exact mechanical dimensions and thermal characteristics. Ensure the operating environment does not exceed the 50 Watt average power rating or the 18 GHz frequency limit. Cross-reference the TNC male interface compatibility with existing system connectors before procurement.

Selection Notes

Select this model when a robust, medium-power termination is required for frequencies up to 18 GHz. The 50 Ohm impedance matches standard RF systems. Consider the stainless steel construction for environments requiring corrosion resistance. Verify that the TNC male connector type aligns with the source equipment interface requirements.

Part Context

This component belongs to Pasternack's series of coaxial loads and terminations. It serves as a passive device designed to absorb RF energy without reflection. The product line focuses on providing reliable impedance matching and power dissipation for various connector types and frequency ranges within RF engineering workflows.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
