PE6219

Overview

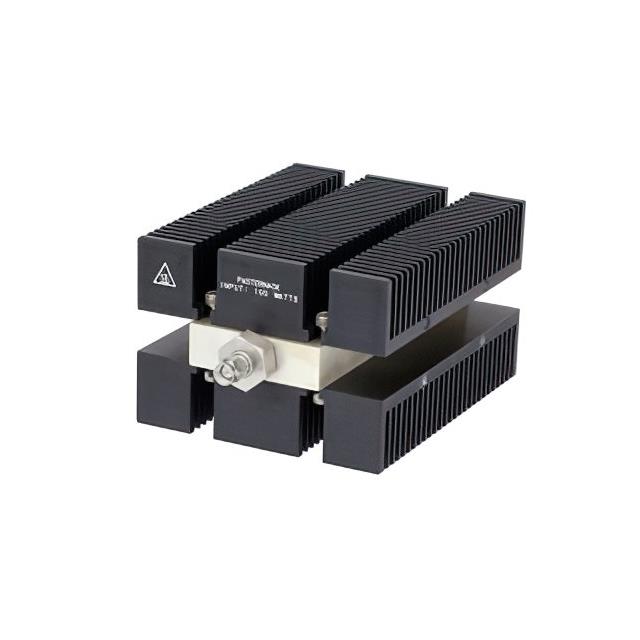

The PE6219 is a high-power RF load termination manufactured by Pasternack. It features an SMA male input connector and is designed for operation up to 8 GHz. The component provides a nominal 50 Ohm impedance and supports an average maximum power handling capacity of 100 Watts. It maintains an average maximum Voltage Standing Wave Ratio (VSWR) of 1.5:1, ensuring effective signal absorption in microwave and RF systems.

Feature Summary

• High power handling capability rated at 100 Watts
• Operational frequency range extending up to 8 GHz
• SMA male coaxial interface design
• Low VSWR performance for efficient energy dissipation

Applications

• RF system testing and measurement setups
• Signal source termination
• Microwave circuit characterization
• Power amplifier output loading

Procurement Notes

Verify the specific datasheet version for thermal management requirements and mounting instructions. Confirm that the SMA male interface matches your system's port configuration. Ensure operational conditions remain within the specified 100 Watt average power limit and 8 GHz frequency range to maintain performance integrity and prevent component damage during procurement validation.

Selection Notes

Select this termination when a robust 50 Ohm load is required for frequencies up to 8 GHz. The 100 Watt power rating suits applications demanding significant energy dissipation. The SMA connector type dictates compatibility with standard SMA-based test equipment and cabling infrastructure. Consider thermal dissipation capabilities relative to the expected continuous duty cycle in the target application environment.

Part Context

This component belongs to Pasternack's portfolio of RF terminations and loads. It serves as a passive device for absorbing RF energy without reflection. The product line focuses on providing reliable impedance matching solutions for communication and test environments. It complements other RF components like cables, adapters, and attenuators within the manufacturer's catalog.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify connector gender and impedance specifications when sourcing alternatives. Ensure replacement components meet or exceed the 100 Watt power and 8 GHz frequency requirements.

FAQ

What is the maximum operating frequency for the PE6219?

The PE6219 is designed to operate effectively up to 8 GHz.

What is the power handling capacity of this RF load?

The component supports an average maximum power handling capacity of 100 Watts.
