PE6220

$853.06

Description：High Power 100 Watt RF Load Up T
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:77cbb9550b27 Category: RF Misc ICs and Modules Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：High Power 100 Watt RF Load Up T
Series：-
Mfr：Pasternack
Package：Retail Package
Function：Termination
Frequency：0Hz ~ 8GHz
RF Type：Radar
Secondary Attributes：100W
Mounting Type：Chassis Mount
Package / Case：TNC In-Line Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PE6220

Overview

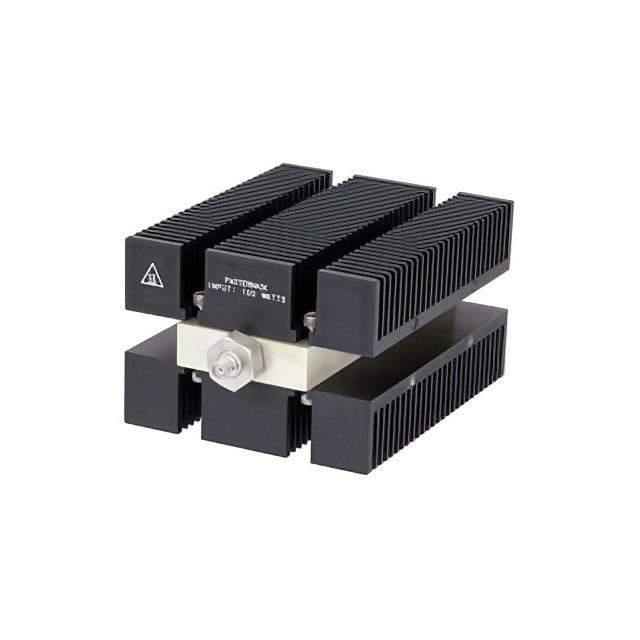

The Pasternack PE6220 is a high-power RF load designed for operation up to 8 GHz. It features an SMA female connector interface and provides a nominal impedance of 50 Ohms. The component is rated for a continuous power handling capacity of 100 Watts, making it suitable for demanding RF environments. This termination device serves as a dummy load to absorb signal energy without reflection.

Feature Summary

High power handling capability for robust RF testing
Broadband frequency response extending to 8 GHz
SMA female connector interface for standard integration

Applications

RF circuit testing and characterization
Signal source protection during measurements
Dummy load applications in microwave systems

Procurement Notes

Verify the specific datasheet version for precise VSWR and thermal resistance values. Confirm that the SMA female interface matches your system requirements. Ensure the operating environment allows for adequate heat dissipation given the 100 Watt rating. Check for any specific mounting hardware requirements not included with the unit.

Selection Notes

Select this model when a 50 Ohm termination is required for frequencies up to 8 GHz. Consider the 100 Watt power rating against your maximum expected signal levels. Ensure compatibility with SMA female ports on your test equipment or DUT. Evaluate thermal management needs based on continuous duty cycles.

Part Context

This component belongs to Pasternack's portfolio of RF and microwave passive components. It functions as a precision load within their broader selection of connectors, adapters, and cable assemblies. The product supports engineers requiring reliable signal absorption solutions for high-frequency applications.

Replacement Considerations

Consult official Pasternack documentation for direct cross-reference part numbers. Verify that any substitute maintains the 50 Ohm impedance and SMA female interface. Ensure the replacement meets or exceeds the 8 GHz frequency range and 100 Watt power rating specifications.
