PE64904C-Z

Overview

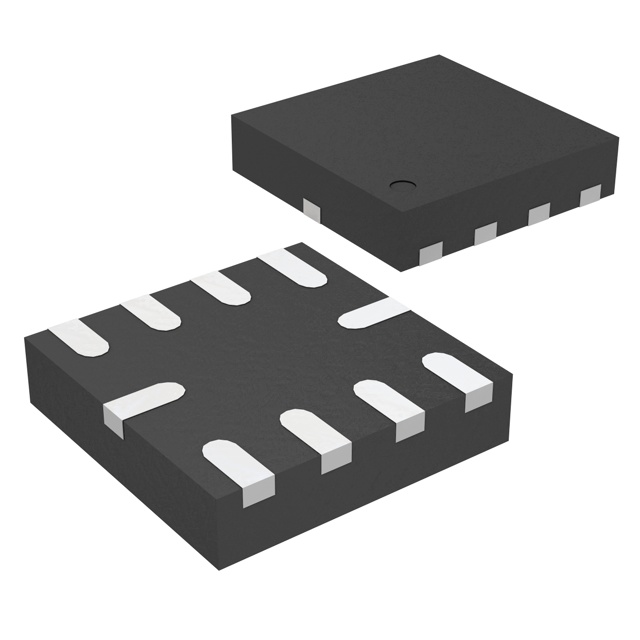

The PE64904C-Z is a digitally tunable capacitor (DTC) from pSemi, operating within the 100MHz to 3GHz frequency range. It utilizes UltraCMOS® and DuNE™ technologies for high-performance RF tuning. The device features a 3-wire SPI-compatible serial interface with built-in bias voltage generation and ESD protection. It is housed in a compact 10-QFN (2x2 mm) surface-mount package. The component supports a DC voltage rating of 2.6V and is RoHS compliant.

Feature Summary

• Integrates DuNE-enhanced UltraCMOS technology for advanced digital tuning capabilities
• Includes a 3-wire SPI-compatible serial interface with integrated bias voltage generation
• Features built-in electrostatic discharge (ESD) protection mechanisms
• Utilizes a compact 10-lead QFN surface-mount package design

Applications

• RF front-end module tuning
• Antenna impedance matching networks
• Phase shifter circuits
• Variable filter applications

Procurement Notes

Verify current availability status as distribution channels may indicate discontinued or limited stock conditions. Confirm that the specific suffix 'C' aligns with required specifications, noting that manufacturer-recommended substitutes such as the PE64904D-Z exist. Ensure compliance with RoHS3 standards and check for any recent product change notices affecting the component's electrical characteristics or packaging before finalizing procurement orders.

Selection Notes

Select this component for applications requiring precise digital control over capacitance values in the UHF and SHF bands. The SPI interface allows for easy integration with microcontrollers or FPGAs. Consider the 2.6V DC voltage rating when designing power supply rails. The small 10-QFN footprint is suitable for space-constrained mobile and wireless devices. Evaluate thermal management requirements associated with the surface-mount package.

Part Context

This part belongs to the PE64904 series, which includes various variants like the EK64904 evaluation kit. The PE64904C-Z specifically denotes a version with the C suffix, often indicating specific binning or minor revisions compared to base models. It is part of pSemi's portfolio of RF ICs designed for modern communication systems requiring agile frequency response.

Replacement Considerations

The PE64904D-Z is identified as a manufacturer-recommended substitute. Verify pinout compatibility and electrical parameter equivalence before swapping. Check if the D-Z variant offers improved performance metrics or different packaging options suitable for your specific PCB layout constraints.
