PE6800

Overview

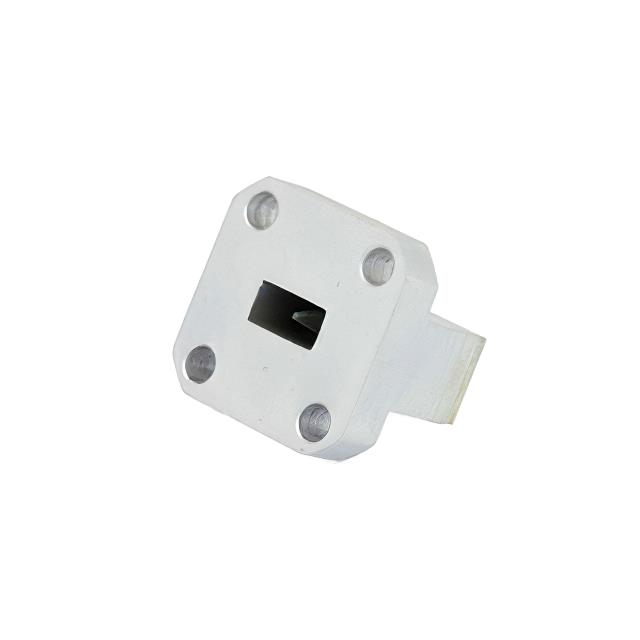

The Pasternack PE6800 is a low-power RF waveguide load designed for WR-28 rectangular waveguide applications. It operates within a frequency range of 26.5 GHz to 40 GHz and handles a maximum power rating of 0.5 Watts. This component serves as an RF terminator, providing precise impedance matching to minimize signal reflections in high-frequency test and measurement setups.

Feature Summary

• Engineered specifically for WR-28 rectangular waveguide interfaces
• Provides stable RF termination across the specified millimeter-wave spectrum
• Constructed for low-power operational environments

Applications

• Millimeter-wave test and measurement systems
• Waveguide circuit characterization
• Signal source isolation

Procurement Notes

Verify the specific datasheet version and physical dimensions against your WR-28 waveguide system requirements. Confirm that the 0.5 Watt power rating aligns with your operational signal levels to prevent component damage. Ensure compatibility with standard WR-28 flange types before finalizing procurement.

Selection Notes

Select this model when operating within the 26.5 GHz to 40 GHz band using WR-28 waveguides. Consider higher power variants if average power exceeds 0.5 Watts. Evaluate mechanical interface standards to ensure seamless integration into existing waveguide chains without requiring additional adapters.

Part Context

This component belongs to Pasternack's line of waveguide terminations, which are stocked for immediate shipment. The PE6800 represents a specialized solution for low-power applications in the K-band and beyond, distinct from higher-power counterparts like the PE6833 series.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official manufacturer channels for direct equivalents or cross-reference based on strict WR-28 waveguide and frequency specifications.
