PE6828

Overview

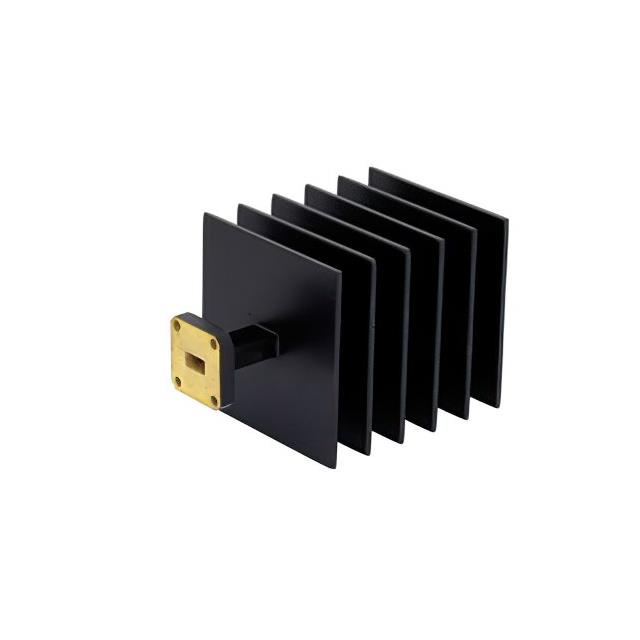

The PE6828 is a high-power waveguide load manufactured by Pasternack. It features a WR-34 input interface and operates within a frequency range of 22 GHz to 33 GHz. The component is rated for 75 Watts of power handling capacity. The housing is constructed from aluminum material. This device functions as a precision termination for waveguide systems.

Feature Summary

• Designed for high-power applications with a 75 Watt rating
• Operates across the 22 GHz to 33 GHz frequency spectrum
• Utilizes a standard WR-34 waveguide input configuration

Applications

• Waveguide system testing and measurement
• High-power RF signal termination
• Microwave communication equipment loads

Procurement Notes

Verify the specific datasheet documentation for detailed electrical performance characteristics and mechanical dimensions before integration. Confirm that the WR-34 interface matches the host system requirements. Ensure the operating environment remains within the specified 22 GHz to 33 GHz range to maintain the 75 Watt power rating integrity.

Selection Notes

Select this component when a robust, high-power termination is required for WR-34 waveguide applications. The aluminum construction provides durability suitable for demanding environments. Consider the 75 Watt power handling capability against the maximum expected signal levels in the transmission line to ensure safe operation without thermal damage.

Part Context

This part belongs to the Waveguide RF Terminations series produced by Pasternack. It serves as a passive component designed to absorb microwave energy efficiently. The product is categorized under RF Interconnects and is distinct from coaxial cable assemblies or lower-frequency terminators due to its specific waveguide geometry and high-frequency capabilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
