PE6TR1006

Overview

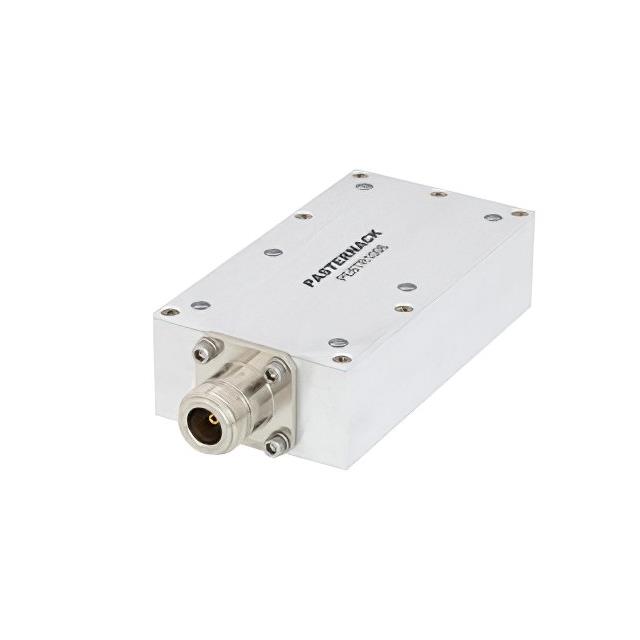

The PE6TR1006 is a high-power RF termination manufactured by Pasternack. It features an N-type female connector and operates within a frequency range of DC to 500 MHz. The component is rated for 800 watts of power handling capacity. It utilizes chemically film-plated aluminum construction and maintains a 50-ohm impedance. The average maximum Voltage Standing Wave Ratio (VSWR) is specified as 1.5:1. This coaxial load is RoHS compliant and designed for reliable signal absorption in RF test environments.

Feature Summary

• High power handling capability up to 800 watts
• Wideband operation from DC to 500 MHz
• N-type female connector interface
• Chemical film plated aluminum housing

Applications

• RF power testing and measurement setups
• Signal generator load termination
• Amplifier output matching and testing
• Laboratory RF circuit characterization

Procurement Notes

Verify the specific datasheet version provided by Pasternack Enterprises, Inc., to confirm current manufacturing specifications. Ensure compatibility with N-type female mating connectors in your system design. Confirm that the 800-watt rating aligns with your peak and average power requirements. Check RoHS compliance status if required for your assembly standards. Validate the physical dimensions against your available mounting space before procurement.

Selection Notes

Select this model when high power dissipation is required at frequencies below 500 MHz. The N-type connector offers robust mechanical stability compared to smaller RF interfaces. Consider the aluminum construction for thermal management during continuous high-power operation. Ensure the 50-ohm impedance matches your system's characteristic impedance to minimize reflections. Evaluate the VSWR specification against your precision requirements for accurate signal termination.

Part Context

The PE6TR1006 belongs to Pasternack’s series of coaxial RF terminations. These components are designed to absorb RF energy without reflecting it back into the source. The product line includes various power ratings and connector types to suit different frequency ranges. This specific model targets applications requiring significant power handling within the VHF/UHF spectrum. It serves as a critical passive component in RF signal chain integrity.

Replacement Considerations

No public confirmed substitute part numbers are documented for this specific model.
