PE6TR1165

Overview

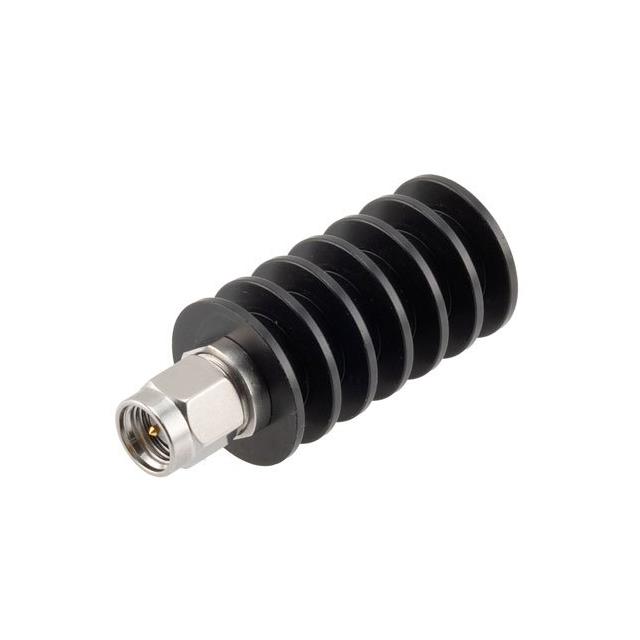

The Pasternack PE6TR1165 is a coaxial RF termination designed for high-power applications. It features an SMA male connector and operates from DC to 26.5 GHz with a power handling capacity of 10 Watts. The unit maintains a 50-ohm impedance and utilizes a stainless steel body with gold-plated contacts. It is rated for operation within a temperature range of -55°C to +125°C, ensuring reliability in demanding environments.

Feature Summary

• High-power dissipation capability up to 10 Watts
• Wideband frequency response extending to 26.5 GHz
• Robust construction with stainless steel housing
• Extended operational temperature range for harsh conditions

Applications

• Radar system load terminations
• RF test and measurement setups
• Microwave circuit characterization
• Signal generator output protection

Procurement Notes

Verify the specific SMA connector gender and pin configuration against your equipment interface requirements before purchase. Confirm that the 10-watt continuous power rating aligns with your system's peak and average power levels. Ensure the operating temperature range meets your environmental specifications. Check for any specific datasheet revisions or compliance certifications required for your application.

Selection Notes

Select this model when a broadband termination is required up to 26.5 GHz with significant power handling. The SMA interface suits standard laboratory and field equipment. Consider thermal management if ambient temperatures approach the upper limit. Compare against lower-power models if wattage requirements are reduced to optimize cost.

Part Context

This component belongs to Pasternack's series of coaxial RF terminators. These devices are engineered to absorb RF energy without reflection, providing a matched load for testing and system stability. The PE6TR1165 represents a high-performance variant within this family, distinguished by its elevated power rating and wide bandwidth capabilities compared to standard low-power loads.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify compatibility with existing SMA interfaces and ensure equivalent power and frequency ratings when sourcing alternatives.
