Product Detailed Parameters
- Description：2 Watt RF Load Up to 18 GHz With
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Termination
- Frequency：0Hz ~ 18GHz
- RF Type：Radar
- Secondary Attributes：2W
- Mounting Type：Chassis Mount
- Package / Case：TNC In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

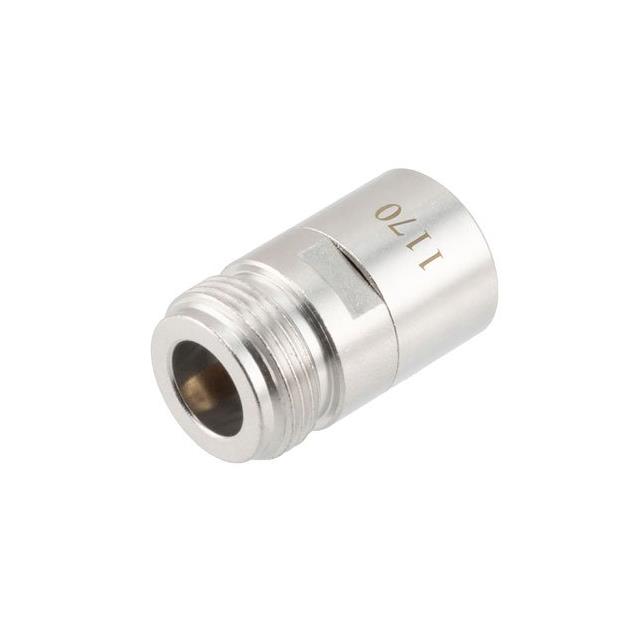

The PE6TR1170 is an RF load termination manufactured by Pasternack, designed for high-frequency signal absorption. It features a brass body and incorporates an N-type female input connector interface. The component supports a power handling capacity of 2 watts and operates effectively across a frequency range extending up to 18 GHz. This termination unit serves as a dummy load for circuit testing and measurement applications.
Feature Summary
- Constructed with a durable brass housing for thermal stability
- Equipped with an N-type female connector for secure attachment
- Functions as a broadband RF load for signal termination
Applications
- RF circuit testing and validation
- Signal source termination in measurement setups
- Dummy load application for transmitter testing
Procurement Notes
Verify the specific datasheet documentation for the PE6TR1170 to confirm current manufacturing status and technical specifications. Ensure compatibility with N-type female interfaces in your system design. Review RoHS compliance details through official manufacturer channels before integration into regulated environments.
Selection Notes
Select this component when a 2-watt power rating and operation up to 18 GHz are required. The N-type female interface dictates mating connector requirements. Brass construction offers specific thermal characteristics compared to stainless steel alternatives. Confirm impedance matching needs for the target application environment.
Part Context
This part belongs to the Coaxial RF Terminations series from Pasternack. It falls under the broader category of RF Interconnects and specifically addresses the need for reliable signal absorption in high-frequency systems. The product line focuses on providing stable termination solutions for various connector types.
Replacement Considerations
The PE6TR1170 shares specifications with the PE6TR1172C, which utilizes a TNC female connector instead of N-type. Verify connector gender and interface type compatibility when considering substitutes. No other direct substitute part numbers are publicly confirmed for this specific model.
