PE6TR1171

Overview

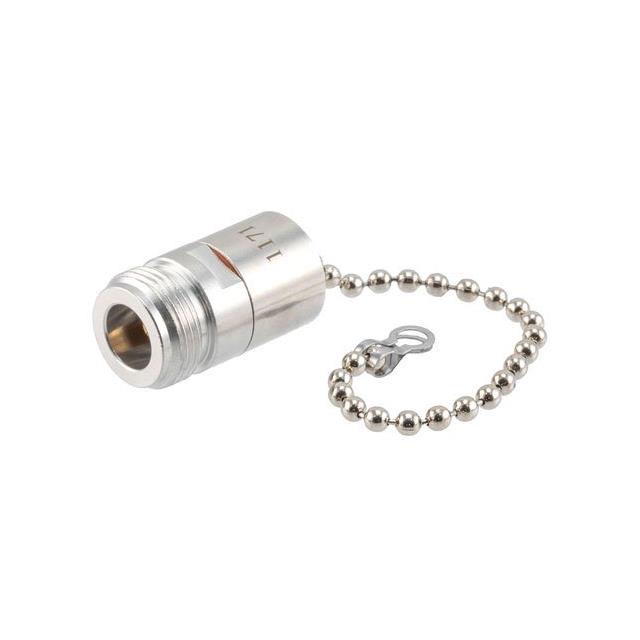

The Pasternack PE6TR1171 is a coaxial RF terminator designed for high-frequency applications. It features an N-Type female input interface and utilizes a brass body construction. The component is rated as a 2-watt RF load, providing reliable power absorption capabilities. It supports operation up to a maximum frequency of 18 GHz. The unit is packaged in bulk quantities for distribution.

Feature Summary

• Incorporates an N-Type female connector interface for standard coaxial integration
• Constructed with a durable brass housing material
• Rated for 2-watt continuous power dissipation
• Operational frequency range extends up to 18 GHz

Applications

• RF circuit termination
• Signal testing environments
• Measurement system loads

Procurement Notes

Verify the specific datasheet documentation for the PE6TR1171 to confirm current manufacturing status and detailed electrical tolerances. Ensure compatibility with N-Type female mating connectors before integration. Review RoHS compliance details and packaging specifications directly from the manufacturer's official product sheet to align with project requirements.

Selection Notes

Select this component when an N-Type female interface is required for terminating RF signals up to 18 GHz. The 2-watt power rating suits moderate power dissipation needs. Brass body construction offers mechanical stability. Confirm that the operating environment does not exceed the specified thermal or frequency limits defined in the official technical data.

Part Context

This part belongs to the Coaxial RF Terminations series by Pasternack. It falls under the broader category of RF Interconnects. The PE6TR1171 serves as a passive load component within RF systems, distinct from active devices or cable assemblies found in other product lines.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
