Product Detailed Parameters
- Description：2 Watt RF Load Up to 18 GHz With
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Termination
- Frequency：0Hz ~ 18GHz
- RF Type：Radar
- Secondary Attributes：2W
- Mounting Type：Chassis Mount
- Package / Case：TNC In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

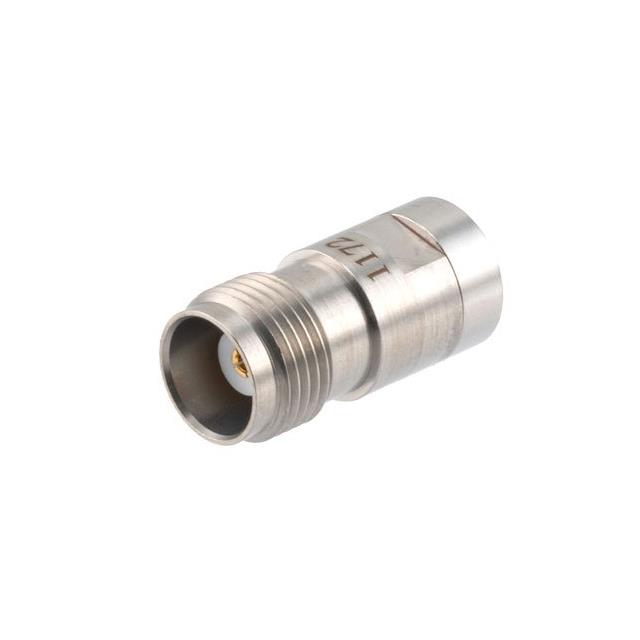

The Pasternack PE6TR1172 is a coaxial RF terminator designed for high-frequency signal termination. It features a TNC female input connector and a stainless steel body construction. The component operates as a 2-watt RF load with a frequency range extending up to 18 GHz. This device serves as a dummy load for testing and measurement applications, ensuring proper impedance matching within the specified bandwidth.
Feature Summary
- Features a TNC female input connector interface
- Constructed with a durable stainless steel body
- Functions as a 2-watt RF load termination
Applications
- RF circuit testing and measurement
- Signal source termination
- VNA port protection
Procurement Notes
Verify the specific datasheet version when ordering, as manufacturer specifications may be updated. Confirm that the TNC female interface matches your system requirements. Check current availability status through authorized distributors, as lead times can vary. Ensure the 2-watt power rating is sufficient for your application's peak power levels before finalizing procurement.
Selection Notes
Select this model when a TNC female interface is required for frequencies up to 18 GHz. Consider the stainless steel housing for environmental durability compared to plated alternatives. Evaluate the 2-watt power handling capability against your system's maximum output. This terminator is suitable for general-purpose RF testing where standard impedance matching is needed.
Part Context
This component belongs to the Coaxial RF Terminations series by Pasternack. It falls under the broader category of RF Interconnects and is classified specifically as an RF Terminator. The product is part of Pasternack's lineup of passive RF components used for signal management and system calibration in electronic test environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users requiring alternative terminators should consult the manufacturer's catalog for compatible models with similar electrical characteristics and connector types.
