PE6TR1172C

Overview

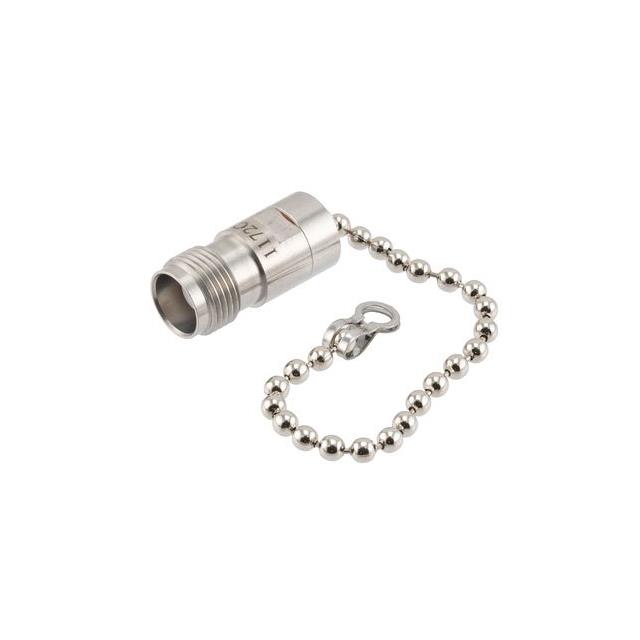

The PE6TR1172C is a coaxial RF terminator manufactured by Pasternack, designed for high-frequency signal termination applications. It features a TNC female input connector and is constructed with a stainless steel body for durability. The component supports a power rating of 2 watts and operates effectively across a frequency range from DC to 18 GHz. This device serves as a reliable load for testing and measurement systems requiring stable impedance matching within the specified bandwidth.

Feature Summary

• Provides stable RF termination up to 18 GHz
• Features a durable stainless steel housing
• Equipped with a TNC female interface

Applications

• RF test and measurement setups
• Signal generator output termination
• Network analyzer calibration procedures

Procurement Notes

Verify availability through authorized distributors as supply status may vary. Confirm that the TNC female interface matches system requirements. Ensure the 2-watt power rating and 18 GHz frequency limit align with operational needs. Check RoHS compliance documentation if environmental regulations apply to the deployment environment.

Selection Notes

Select this model when a robust, high-frequency termination is required for TNC-based systems. The stainless steel construction offers mechanical stability suitable for benchtop or rack-mounted environments. Consider the 2-watt capacity to ensure safe operation under expected signal loads without thermal degradation.

Part Context

This component belongs to the Coaxial RF Terminations series by Pasternack. It is categorized under RF Interconnects and specifically functions as an RF Load. The product is distinct from cable assemblies or antennas within the manufacturer's portfolio, focusing solely on passive termination functionality.

Replacement Considerations

No public substitute part numbers are documented in the provided source material. Verify compatibility with existing TNC fixtures before considering alternative models.
