PE6TR1177

Overview

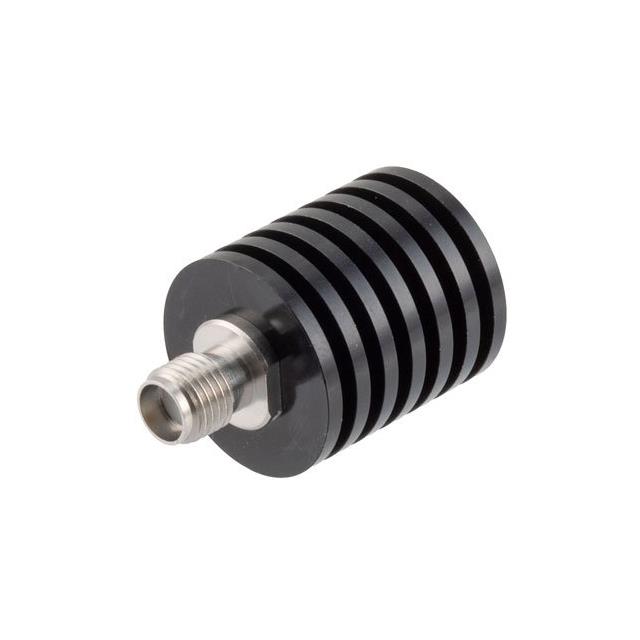

The PE6TR1177 is a coaxial RF terminator manufactured by Pasternack, designed for high-frequency signal termination applications. It features an SMA female input connector and is housed in a stainless steel body for durability. The component supports a continuous power rating of 5 Watts and operates effectively across a frequency range from 0 Hz to 18 GHz. This specification allows for versatile use in broadband testing environments where wideband impedance matching is required.

Feature Summary

• Stainless steel construction provides robust physical protection and thermal stability.
• SMA female interface ensures compatibility with standard coaxial test equipment.
• Broadband operational capability extends up to 18 GHz for wideband applications.

Applications

• RF signal path termination in laboratory test setups
• Wideband antenna measurement systems
• Vector network analyzer calibration procedures

Procurement Notes

Verify the specific datasheet version provided by Pasternack to confirm current manufacturing status and compliance details. Ensure that the SMA female interface matches the mating connector on the target equipment. Confirm that the 5W power rating aligns with the maximum expected signal levels in the application to prevent component damage during operation.

Selection Notes

Select this model when a broadband termination solution is required up to 18 GHz. The 5W power handling capacity distinguishes it from lower-power variants suitable for general-purpose use. The stainless steel housing offers advantages in rugged environments compared to plastic-bodied alternatives. Verify that the SMA interface type meets the system requirements before procurement.

Part Context

This component belongs to the Coaxial RF Terminations series by Pasternack. It serves as a passive device within the broader category of RF interconnects. The product line focuses on providing reliable impedance matching solutions for various connector types and frequency ranges, supporting both standard and specialized RF engineering needs.

Replacement Considerations

Direct substitutes may include other Pasternack models with similar SMA female interfaces and comparable power ratings. Verify that any alternative part maintains the 18 GHz upper frequency limit and 5W power handling capability to ensure functional equivalence in existing designs.
