Product Detailed Parameters
- Description：5 Watt RF Load (Termination) Up
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Termination
- Frequency：0Hz ~ 6GHz
- RF Type：5G, Radar
- Secondary Attributes：5W
- Mounting Type：Chassis Mount
- Package / Case：TNC In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

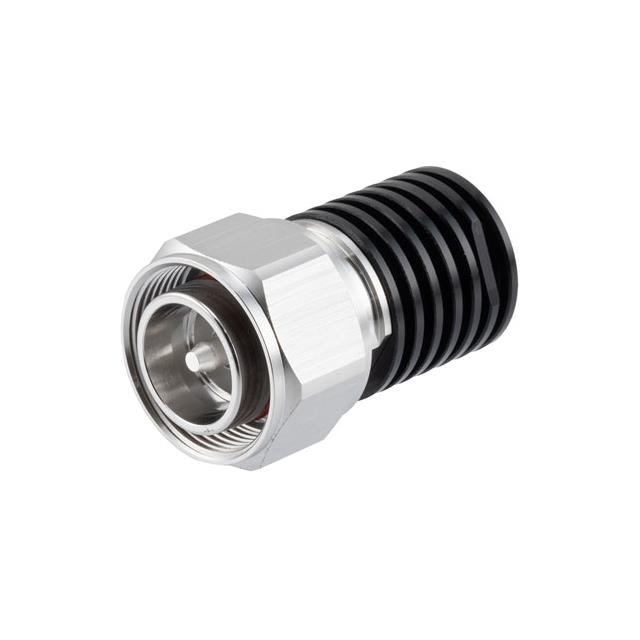

The PE6TR1181 is a 5-watt RF load termination manufactured by Pasternack, designed for applications requiring reliable signal absorption up to 6 GHz. It features a 4.3-10 male input connector interface, ensuring compatibility with standard coaxial systems in 5G and radar environments. Constructed with a robust stainless steel body and gold-plated copper contacts, the component maintains a 50-ohm impedance across its operational frequency range from DC to 6 GHz. This termination serves as a dummy load for testing and measurement purposes.
Feature Summary
- Provides stable 5-watt power handling capacity for RF signal termination
- Features a durable stainless steel housing with gold-plated internal contacts
- Designed specifically for high-frequency 5G and radar system applications
Applications
- 5G wireless infrastructure testing
- Radar system calibration and measurement
- RF circuit load simulation
Procurement Notes
Verify the specific datasheet version for mechanical dimensions and thermal characteristics before integration. Confirm that the 4.3-10 male connector type matches your existing test setup requirements. Ensure environmental conditions align with the component's operating specifications for optimal performance during long-term deployment.
Selection Notes
Select this model when a 5-watt power rating is required for frequencies extending up to 6 GHz. The 4.3-10 male interface is critical for systems utilizing this specific connector standard. Consider thermal management capabilities if continuous high-power operation is anticipated within the specified frequency band.
Part Context
This component belongs to Pasternack's series of coaxial RF terminations. It functions as a passive device to absorb RF energy without reflection. The product line supports various connector types and power ratings for diverse microwave and millimeter-wave applications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing fixtures due to the specific 4.3-10 male connector geometry.
