PE6TR1183

Overview

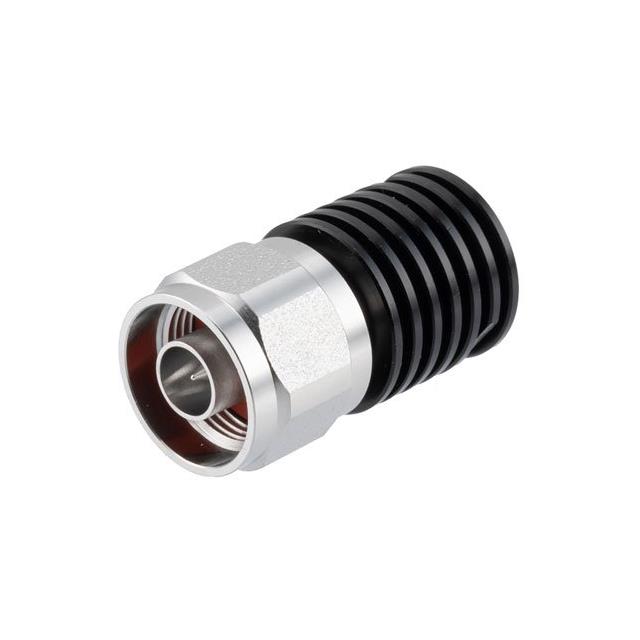

The Pasternack PE6TR1183 is an RF termination designed for frequencies up to 6 GHz. It features a male N-type input connector and is rated for 5 Watts of continuous wave power. The unit utilizes a black anodized aluminum body for thermal management and durability.

Feature Summary

• Operates from DC to 6 GHz
• Handles 5 Watt continuous wave power
• Features N-type male connector interface
• Constructed with black anodized aluminum housing

Applications

• RF signal testing and measurement
• Radar system load applications
• 5G infrastructure testing
• Microwave circuit termination

Procurement Notes

Verify the specific part number PE6TR1183 against official Pasternack documentation to confirm the N-type male configuration and 5W rating. Ensure compatibility with your system's frequency range up to 6 GHz. Cross-reference datasheets for precise physical dimensions and thermal characteristics before integration.

Selection Notes

Select this component when a fixed 50-ohm load is required for N-type connections in high-frequency environments. Consider the 5W power handling capability for continuous operation. Verify that the black anodized aluminum construction meets environmental requirements for your specific deployment scenario.

Part Context

This device belongs to Pasternack's line of RF terminators, also referred to as RF loads or dummy loads. These components are essential for absorbing RF energy in test setups and preventing signal reflections in microwave circuits.

Replacement Considerations

Consult official Pasternack substitution guides for verified equivalent models. Ensure any replacement maintains the N-type male interface, 6 GHz frequency limit, and 5W power rating.
