PE6TR1184

Overview

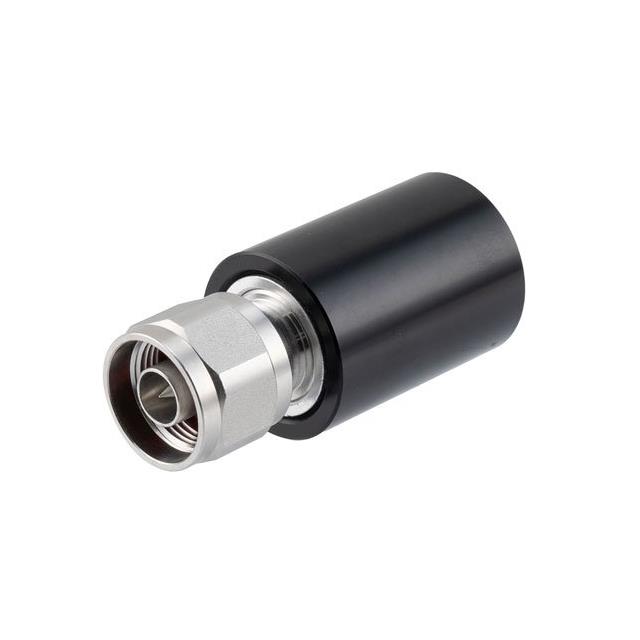

The Pasternack PE6TR1184 is a high-power RF load termination rated for 10 watts of power dissipation. It features an N-type male input connector and operates within a frequency range from DC to 6 GHz. The unit is constructed with a black finish, suitable for general RF applications requiring stable impedance matching and heat dissipation at moderate frequencies.

Feature Summary

• High power handling capability of 10 watts
• Operates up to 6 GHz frequency range
• N-type male connector interface

Applications

• 5G infrastructure testing
• Radar system calibration
• General RF load testing

Procurement Notes

Verify the specific datasheet version for thermal resistance details and mounting requirements. Confirm that the N-type male interface matches your test equipment connectors. Ensure the operating environment allows for adequate heat dissipation given the 10-watt rating.

Selection Notes

Select this component when a 10-watt capacity is required for frequencies up to 6 GHz. The N-type male interface is standard for many benchtop instruments. Consider thermal management solutions if continuous full-power operation is expected in enclosed spaces.

Part Context

This part belongs to Pasternack's line of coaxial RF terminations. These components are designed to absorb RF energy without reflection, providing a matched load for measurement accuracy. The PE6TR1184 specifically targets applications needing higher power handling than standard 1-watt loads.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should verify compatibility based on connector type (N-type male), power rating (10W), and frequency range (DC-6GHz) when sourcing alternatives.
