PE7000-1

Overview

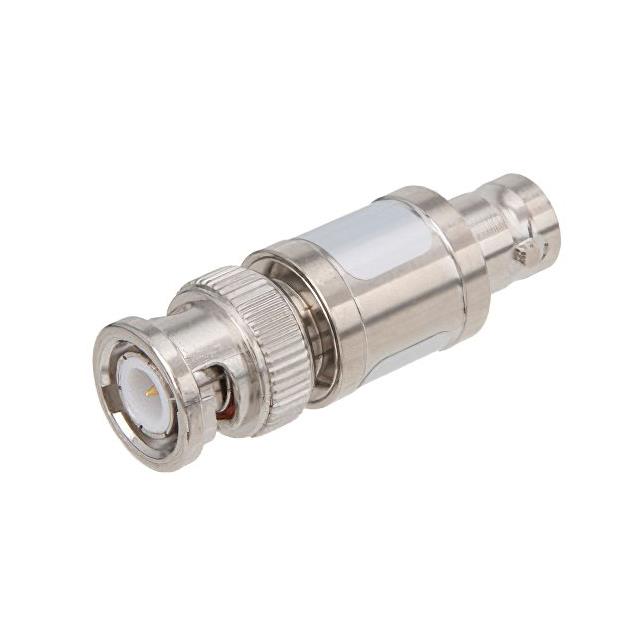

The Pasternack PE7000-1 is a fixed RF attenuator designed for bidirectional signal reduction in microwave applications. It provides an attenuation value of 1 dB with an accuracy of ± 0.3 dB across a frequency range from DC to 2 GHz. The component features BNC male-to-BNC female connectors and maintains a 50 Ohm impedance. It has a maximum VSWR of 1.2:1 and supports up to 1 Watt of input power. The brass nickel body ensures durability within an operating temperature range of -30°C to +70°C.

Feature Summary

• Provides precise 1 dB signal attenuation with high accuracy for consistent performance
• Supports bidirectional operation for flexible circuit integration
• Constructed with a durable brass nickel body for reliable environmental stability

Applications

• RF test and measurement setups requiring signal level adjustment
• Microwave communication systems needing fixed attenuation stages
• Laboratory equipment interfacing with standard BNC connections

Procurement Notes

Verify the specific connector gender configuration matches the system requirements, as BNC variants exist. Confirm that the 1 Watt power rating aligns with the maximum expected signal levels in the application. Ensure the operating temperature range meets the environmental conditions of the installation site. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this model when a low attenuation value near DC is required for BNC-based systems. Consider the 1.2:1 VSWR specification for impedance matching needs. Evaluate the physical dimensions against available space constraints. Compare against other values in the PE7000 series if different attenuation levels are needed.

Part Context

This component belongs to the Pasternack PE7000 series of fixed attenuators. The series offers various attenuation values while maintaining consistent BNC connectivity and 50 Ohm impedance. These units are designed for general-purpose RF applications where stable, non-variable attenuation is necessary. The series shares common mechanical and electrical characteristics across different attenuation steps.
