PE7000-10

Overview

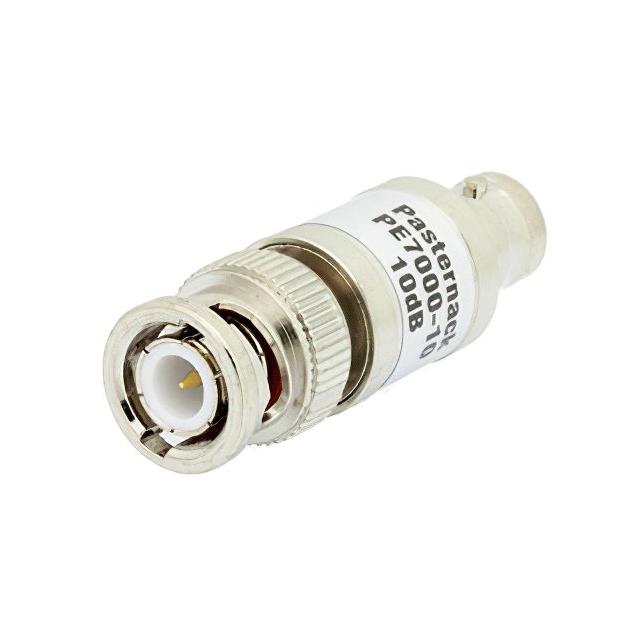

The Pasternack PE7000-10 is a fixed RF coaxial attenuator designed for in-line applications. It provides a nominal attenuation of 10 dB with an accuracy of ±0.3 dB across a frequency range of DC to 2 GHz. The component features BNC male-to-BNC female connectors and maintains a 50 Ohm impedance. It has a maximum VSWR of 1.2:1 and supports up to 1 Watt of input power. The unit operates within a temperature range of -30°C to +70°C, utilizing a brass body with nickel plating.

Feature Summary

• Fixed bidirectional attenuation design using resistive PI pad topology
• Brass nickel-plated body construction for durability
• BNC male to BNC female connector configuration

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching between circuit stages
• Protection of sensitive receiver inputs from high power signals

Procurement Notes

Verify the specific ordering suffix matches the required connector type and attenuation value. Confirm RoHS compliance status if restricted materials are prohibited. Ensure the operating frequency does not exceed 2 GHz to maintain specified performance metrics. Check physical dimensions against available space constraints.

Selection Notes

Select this model when a precise 10 dB reduction is required at frequencies up to 2 GHz. The BNC interface suits standard laboratory and industrial equipment. Consider the 1 Watt power rating to ensure safe operation without thermal damage. The brass nickel body offers robust mechanical stability for repeated connections.

Part Context

This component belongs to the Pasternack PE7000 series of fixed attenuators. The series includes variants with different attenuation values such as 3 dB, 20 dB, and 30 dB. All models share similar physical dimensions, connector types, and general electrical specifications including the 50 Ohm impedance and 2 GHz upper frequency limit.

Replacement Considerations

Direct substitutes include other Pasternack models like PE7000-3 or PE7000-20 if different attenuation levels are acceptable. Cross-manufacturer replacements must match the BNC interface, 50 Ohm impedance, and 2 GHz frequency range. Verify that alternative parts support the same 1 Watt power handling capability.
