PE7000-20

Overview

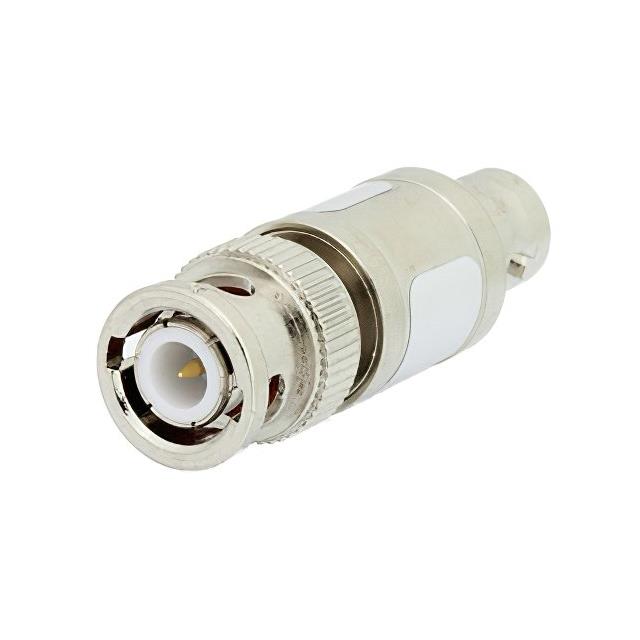

The Pasternack PE7000-20 is a fixed 20 dB attenuator designed for RF applications up to 2 GHz. It features BNC male to BNC female connectors and utilizes an in-line, resistive PI attenuator pad design. The device operates with a 50 Ohm impedance and has a brass nickel body rated for 1 Watt power dissipation.

Feature Summary

• Fixed 20 dB attenuation level
• Resistive PI attenuator pad design
• BNC connector interface

Applications

• RF signal level reduction
• Impedance matching in test setups
• Signal conditioning in coaxial systems

Procurement Notes

Verify the specific datasheet for the PE7000-20 to confirm current availability and technical specifications. Check manufacturer documentation for any updates regarding lead times or compliance standards before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 20 dB attenuation is required within the 2 GHz frequency range. Ensure the system impedance matches the 50 Ohm specification and that the power handling capability of 1 Watt meets the application requirements.

Part Context

This part belongs to the Pasternack PE7000 series of fixed attenuators. The series offers various attenuation values and connector types, providing standardized solutions for RF signal management across different frequency bands and power levels.

Replacement Considerations

Compatible substitutes include other 20 dB fixed attenuators with BNC connectors and similar power ratings, such as those from comparable manufacturers offering 50 Ohm impedance and operation up to 2 GHz.

FAQ

What is the maximum power rating?

The PE7000-20 is rated for up to 1 Watt of power dissipation.

What is the frequency range?

The attenuator is designed for operation up to 2 GHz.
