PE7000-3

Overview

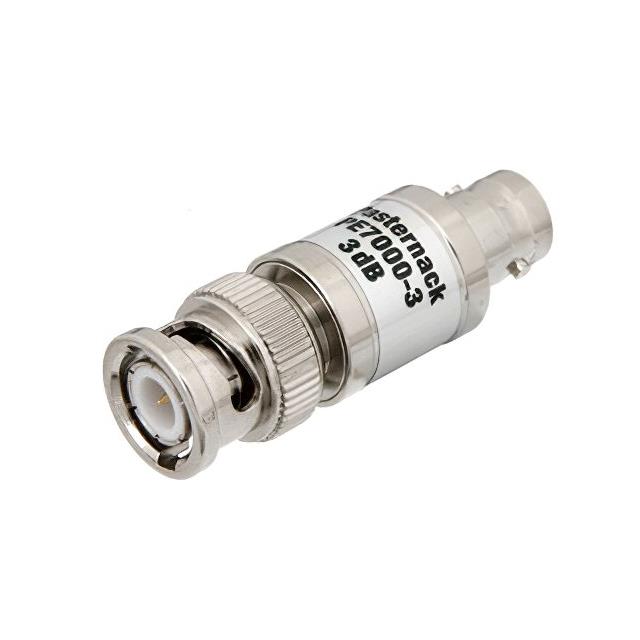

The Pasternack PE7000-3 is a fixed RF attenuator designed for bidirectional signal reduction. It features BNC male to BNC female connectors and operates within a frequency range of DC to 2 GHz. The device provides an attenuation value of 3 dB with an accuracy of ±0.3 dB. It has a characteristic impedance of 50 Ohms and supports a maximum input power of 1 Watt. The unit maintains a VSWR of 1.2:1 across the specified band. Constructed with a brass body featuring nickel plating, it functions reliably between -30°C and +70°C.

Feature Summary

• Bidirectional signal attenuation capability
• Brass body with nickel plating construction
• BNC male to BNC female connector interface

Applications

• RF signal level adjustment in test setups
• Impedance matching in 50 Ohm systems
• Signal conditioning in microwave circuits

Procurement Notes

Verify the specific model designation against official manufacturer documentation to ensure accurate part identification. Confirm that the required attenuation value, frequency range, and power rating align with system requirements. Check connector gender and type compatibility before procurement. Ensure environmental specifications meet operational needs.

Selection Notes

Select this component when a precise 3 dB reduction is required at frequencies up to 2 GHz. Consider the 1 Watt power handling limit for high-power applications. Evaluate the BNC interface for compatibility with existing test equipment. Verify temperature range suitability for the intended operating environment.

Part Context

This component belongs to the category of connectorized attenuators manufactured by Pasternack. It serves as a passive RF device used to reduce signal amplitude without significant reflection. The design focuses on maintaining impedance continuity and low VSWR for stable performance in radio frequency applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
