PE7000-30

Overview

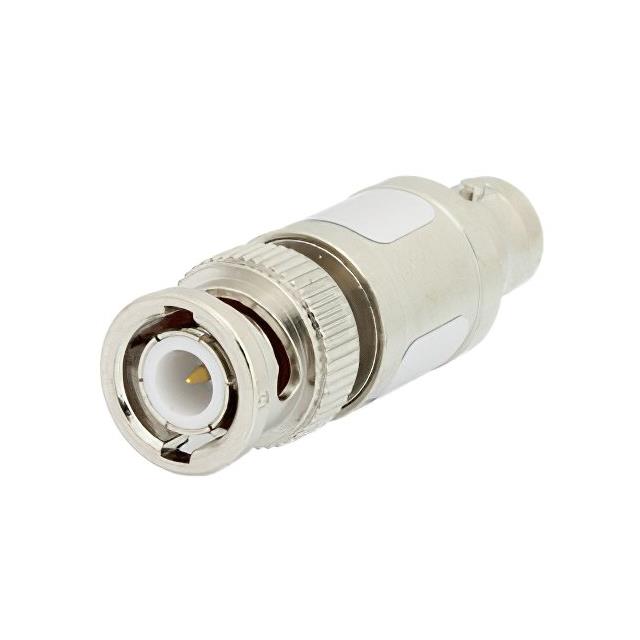

The PE7000-30 is a fixed 30 dB attenuator from Pasternack, designed for in-line applications. It features BNC male to BNC female connectors with a brass nickel body. The device operates within a frequency range of 0 Hz to 2 GHz and maintains a 50 Ohm impedance. It has a maximum input power rating of 1 Watt and a VSWR of 1.2:1. The unit functions within an operating temperature range of -30°C to +70°C.

Feature Summary

• Fixed attenuation design utilizing a resistive PI pad topology
• Bidirectional signal handling capability
• Robust brass construction with nickel plating

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching between RF components
• Signal isolation in microwave circuits

Procurement Notes

Verify the specific datasheet version for the PE7000-30 to ensure compliance with current RoHS standards and lead times. Confirm that the 1 Watt power rating aligns with your system's thermal requirements. Check connector compatibility for BNC interfaces before integration into existing harnesses.

Selection Notes

Select this model when a precise 30 dB reduction is required at frequencies up to 2 GHz. Ensure the 50 Ohm system impedance matches your application to maintain optimal VSWR performance. Consider the 1 Watt power limit and operating temperature range for environmental suitability.

Part Context

This component belongs to the PE7000 series of fixed attenuators from Pasternack. The series offers various attenuation values while maintaining consistent BNC connectivity and 50 Ohm impedance characteristics across the family.

Replacement Considerations

PE7000-3 serves as a functional substitute if lower attenuation is acceptable. For 75 Ohm systems, consider the PE7050-30, though it differs in impedance and power rating.
