PE7000-6

Overview

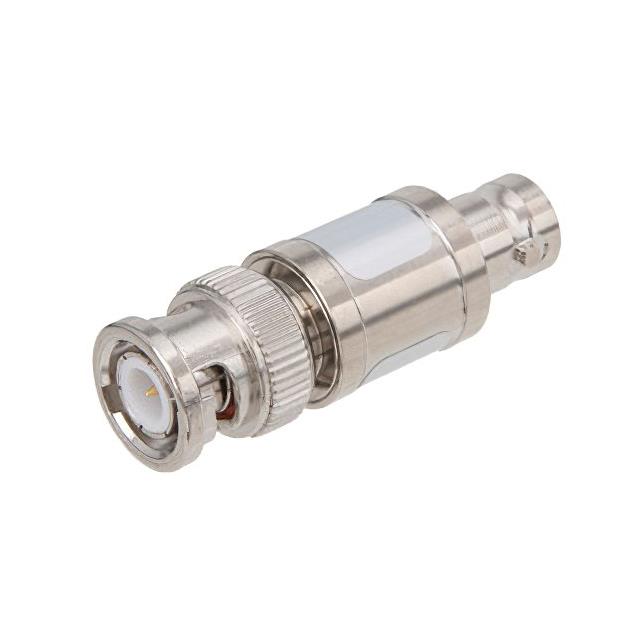

The PE7000-6 is a fixed attenuator manufactured by Pasternack, designed for RF and microwave applications. It provides a nominal attenuation of 6 dB with an impedance of 50 ohms. The device operates within a frequency range of DC to 2 GHz and supports a maximum input power of 1 Watt. Key electrical specifications include a VSWR of 1.2:1 and an attenuation accuracy of ±0.3 dB. The unit features BNC male-to-female connectors, a brass nickel body, and functions within a temperature range of -30°C to +70°C.

Feature Summary

• Fixed bidirectional attenuation design with brass nickel construction
• BNC male to female connector configuration for standard interconnects
• Rated for 1 Watt maximum input power up to 2 GHz frequency limit

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching in 50-ohm microwave circuits
• Signal attenuation in communication system components

Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly from Pasternack official documentation before procurement. Confirm that the BNC connector type and 50-ohm impedance align with your system requirements. Ensure the 1 Watt power rating and 2 GHz frequency limit are sufficient for your operational environment. Check for any lead time variations or regional distribution restrictions associated with this part number.

Selection Notes

Select the PE7000-6 when a precise 6 dB fixed attenuation is required for frequencies up to 2 GHz. This component is suitable for systems utilizing BNC interfaces and requiring a 50-ohm characteristic impedance. Consider the 1 Watt power handling capability and the operating temperature range of -30°C to +70°C for environmental compatibility. Choose this model over variable attenuators if a static attenuation value is sufficient for the application.

Part Context

The PE7000-6 belongs to Pasternack's series of fixed attenuators, which offer various attenuation values for RF applications. These devices are characterized by their brass nickel bodies and standardized BNC connectors, ensuring reliable performance in microwave environments. The series is designed for general-purpose signal conditioning, providing consistent attenuation across the specified frequency range with low VSWR.

Replacement Considerations

Compatible substitutes include other 6 dB fixed attenuators with BNC connectors and similar power ratings, such as the PE7000-3 or PE7000-10 if attenuation values can be adjusted via cascading. Verify that alternative parts match the 50-ohm impedance, 2 GHz frequency limit, and 1 Watt power handling capabilities. Ensure mechanical dimensions and connector types are compatible with existing fixtures.
