Product Detailed Parameters
- Description：1 dB Fixed Attenuator, SMA Male
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Attenuation Value：1dB
- Frequency Range：0 Hz ~ 3 GHz
- Power (Watts)：2W
- Impedance：50 Ohms
- Grade：-
- Qualification：-
- Package / Case：SMA In-Line Module
Download product information
Overview

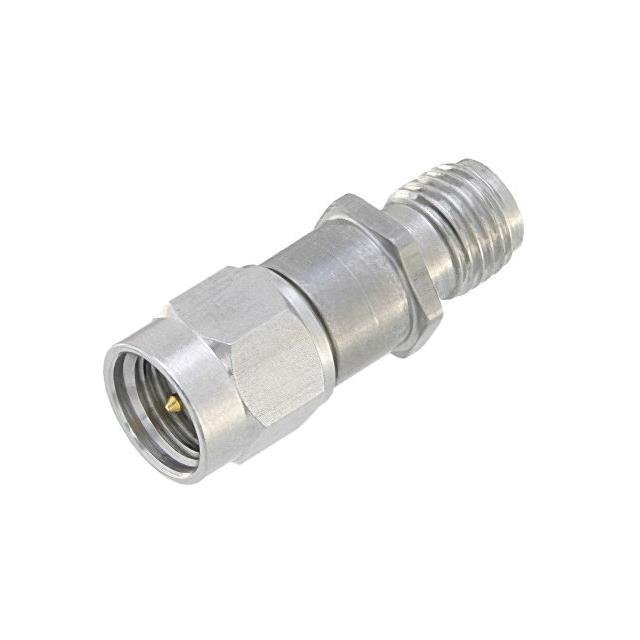

The Pasternack PE7001-1 is a fixed RF attenuator designed for signal management in microwave applications. It provides a precise attenuation value of 1 dB. The component utilizes SMA male to SMA female connectors for interface compatibility. It features a passivated stainless steel body for durability and environmental resistance. The unit is rated for operation up to 3 GHz frequency range. Maximum power handling capacity is specified at 2 Watts.
Feature Summary
- Fixed attenuation design providing consistent signal reduction
- Passivated stainless steel construction for corrosion resistance
- SMA connector interface for standard RF integration
Applications
- RF test and measurement instrumentation
- Microwave communication systems
- Signal conditioning in electronic circuits
Procurement Notes
Verify the exact part number against manufacturer documentation to ensure correct attenuation value and connector type. Confirm frequency range and power rating requirements match application needs. Check for RoHS compliance status if required by project specifications. Ensure SMA connector gender and mating compatibility with existing system components before procurement.
Selection Notes
Select this component when a fixed 1 dB signal reduction is required within the 3 GHz bandwidth. Ensure the 2 Watt power rating exceeds maximum expected signal levels. Verify that SMA male-to-female configuration aligns with system interconnect requirements. Consider the passivated stainless steel housing for environmental protection in operational settings.
Part Context
This model belongs to the Pasternack PE7001 series of fixed attenuators. The series offers various attenuation values using identical SMA connector interfaces and mechanical form factors. All units share similar power handling capabilities and frequency ranges, differing primarily in their specific dB ratings.
Replacement Considerations
Compatible substitutes include other Pasternack models from the PE7001 series with equivalent 1 dB attenuation. Third-party fixed attenuators with matching SMA connectors, 1 dB loss, and 3 GHz/2W specifications may serve as alternatives if electrical parameters are verified.
