PE7001-10

Overview

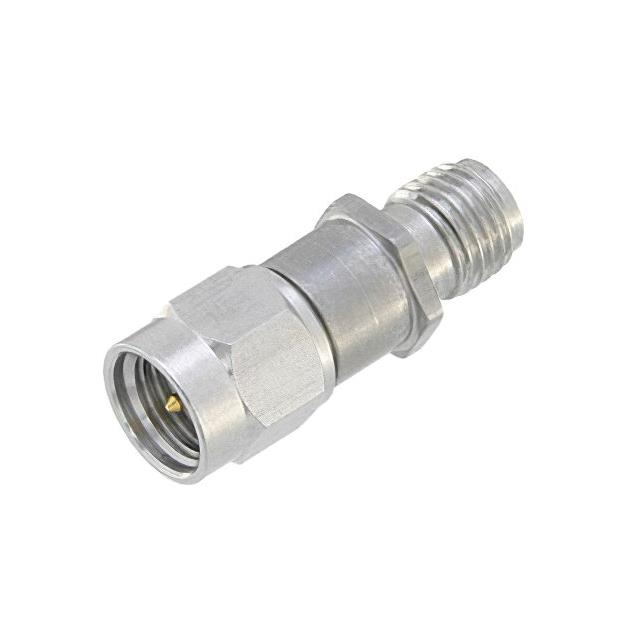

The Pasternack PE7001-10 is a fixed RF attenuator designed for signal level reduction in microwave systems. It provides a precise attenuation value of 10 dB with a maximum operating frequency of 3 GHz. The component features SMA male to SMA female connectors and supports an impedance of 50 Ohms. It is rated for a maximum power handling capacity of 2 Watts at the stated attenuation value. The unit utilizes a passivated stainless steel body for durability and environmental resistance.

Feature Summary

• Fixed attenuation performance ensuring consistent signal reduction
• SMA connector interface for standard RF integration
• Passivated stainless steel construction for reliability

Applications

• General-purpose RF test and measurement instrumentation
• Telecommunications equipment signal conditioning
• Microwave circuit design and prototyping

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributor before procurement. Confirm that the SMA connector gender and polarity match the system requirements. Ensure the 2 Watt power rating and 3 GHz frequency limit are sufficient for the intended application environment to prevent component failure.

Selection Notes

Select this model when a fixed 10 dB reduction is required within a 50 Ohm system up to 3 GHz. Consider the SMA interface compatibility with existing cabling and fixtures. Evaluate if the 2 Watt power rating meets peak signal levels. Compare against other series if variable attenuation or different connector types are needed.

Part Context

This component belongs to the Pasternack PE7001 series of fixed coaxial attenuators. The series offers various attenuation values ranging from low single digits to higher decibel levels, all sharing similar physical dimensions and connector standards. This specific part represents the 10 dB variant within the lineup.

Replacement Considerations

Compatible substitutes include other Pasternack models such as PE7001-9 or PE7001-12 if slight attenuation adjustments are acceptable. Cross-manufacturer equivalents must match the 10 dB value, 50 Ohm impedance, SMA connectors, and 3 GHz frequency range.
