PE7001-15

Overview

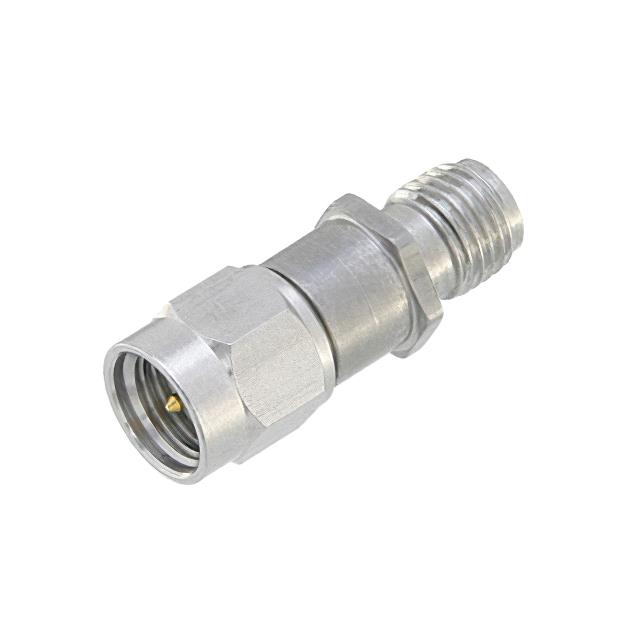

The Pasternack PE7001-15 is a fixed 15 dB coaxial RF attenuator designed for in-line signal reduction. It features an SMA male to SMA female interface configuration, ensuring compatibility with standard 50 Ohm systems. The device utilizes a resistive PI attenuator pad design housed within a passivated stainless steel body for durability and corrosion resistance. Rated for operation up to 3 GHz, this component supports a maximum power handling capacity of 2 Watts at the stated attenuation value. It serves as a reliable passive component for microwave applications requiring precise signal level adjustment.

Feature Summary

• Fixed 15 dB attenuation provided by a resistive PI pad design
• SMA male to SMA female connector interface for 50 Ohm systems
• Passivated stainless steel housing ensures environmental durability
• Operational frequency range extends up to 3 GHz

Applications

• Microwave signal path attenuation
• RF test and measurement setups
• Signal level matching in communication systems
• Protecting sensitive receiver inputs from high power levels

Procurement Notes

Verify that the required attenuation value matches the specific application needs, as this unit provides a fixed 15 dB reduction. Confirm that the operating frequency does not exceed the 3 GHz upper limit to ensure performance integrity. Ensure the system power levels remain within the 2 Watt rating to prevent thermal damage. Check that the SMA male-to-female interface aligns with existing cable assemblies and equipment ports. Validate material specifications if harsh environmental conditions are present.

Selection Notes

Choose this model when a precise 15 dB reduction is required without variable adjustment capabilities. Select based on the need for a robust stainless steel construction over plastic alternatives. Consider the SMA interface type for seamless integration into existing 50 Ohm infrastructure. Evaluate the 3 GHz bandwidth requirement against the specific signal frequencies in use. Assess the 2 Watt power handling capability relative to the maximum expected input power levels in the circuit.

Part Context

This component belongs to the Pasternack PE7001 series of fixed coaxial attenuators. The series offers various attenuation values while maintaining consistent physical dimensions and connector types. Each unit in this line shares the same resistive PI design philosophy and stainless steel housing. The numbering convention typically indicates the specific decibel loss value. This standardization allows for easy substitution within different attenuation requirements while preserving mechanical and electrical interface consistency.

Replacement Considerations

Direct substitutes include other Pasternack models with identical SMA interfaces and similar power ratings but different attenuation values, such as PE7001-9 or PE7001-6. Cross-manufacturer replacements must match the 50 Ohm impedance, SMA gender configuration, and 3 GHz frequency limit. Verify that alternative components support the 2 Watt power handling specification. Ensure the replacement maintains the passivated stainless steel body for equivalent environmental protection.
